Straight Pneumatic Tube Fittings Quick Connector CK-1/8-PK-4 2027 GTIN4052568008130
Price:
EXW USD1-2
MOQ:
1 PCS
Delivery Time:
5-7 working days
Brand:
FESTO
Product Description
FESTO Quick connector CK-1/8-PK-4 2027 GTIN4052568008130
About product
1.Metal design .
2.Male thread with sealing ring.
3.Materials: Screwed trunnion M thread: Galvanised steel G thread: Aluminium Union nut: Aluminium.
4.Note on materials: RoHS-compliant.
5.Bulkhead quick connector.
6.Sealing cap for plastic tube fittings and barbed fittings.
7.Multiple distributor.
Product Technical Data
| Nominal size | 2.9 mm |
| Type of seal on screw-in stud | Sealing ring |
| Mounting position | optional |
| Design | Straight design |
| Size of pack | 10 |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-60°C |
| Pneumatic connection, port 1 | Male thread G1/8 |
| Material union nut | Aluminium-Knetlegierung, eloxiert |
| Material screw-in stud | Anodised wrought aluminium alloy |
| Note on materials | RoHS-compliant |

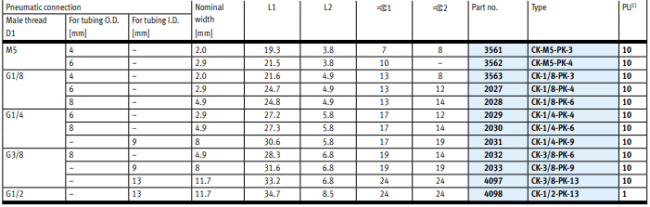

Ordering data
There are many specifications of connectors, price and delivery time. Welcome to inquire.
