GTIN4052568069131 Festo Proximity Sensor SIEN-M12B-PS-S-L 150403
Price:
EXW USD50-60
MOQ:
1pc
Delivery Time:
7-10working days
Brand:
FESTO
Product Description
FESTO Proximity sensor SIEN-M12B-PS-S-L 150403 GTIN4052568069131
About product
Corrosion resistance class CRC 2 to Festo standard FN 940070
Moderate corrosion stress. Indoor applications in which condensation can occur. External visible parts with primarily decorative surface requirements which are in direct contact with a normal industrial environment.
Complete specifications, convenient and fast selection
Technical Data
| Conforms to standard | EN 60947-5-2 |
| Symbol | 00991701 |
| Approval | RCM trademark c UL us listed (OL) |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| Rated operating distance | 2 mm |
| Assured operating distance | 1.62 mm |
| Ambient temperature | -25°C-70°C |
| Switching output | PNP |
| Short circuit current rating | Pulsed |
| Operational voltage range DC | 10 V ... 30 V |
| Reverse polarity protection | For all electrical connections |
| Electrical connection | 3-pin M12x1 Plugs |
| Size | M12x1 |
| Type of mounting | Via lock nut |
| Mounting type | Flush |
| Product weight | 30 g |
| Material housing | Brass PBTP Nickel-plated |
| Switching status indication | Yellow LED |
| Ambient temperature with moving cable | -5°C-70°C |
| Degree of protection | IP65 IP67 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Additional information for sensor selection | with standard sensing distance |
| Electrical output | PNP |
| Selection of sensor design | Standard |

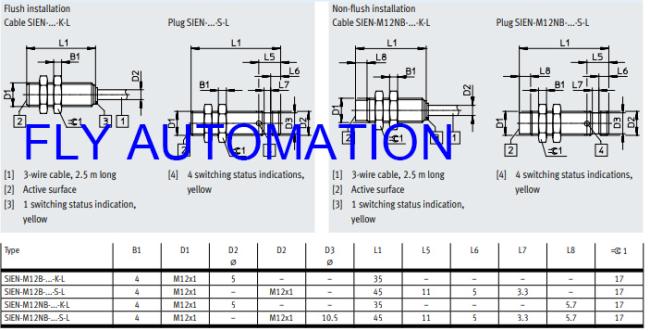

Dimensions – M12
There are many models . Please hurry to me!
