FESTO ISO Pneumatic Air Cylinders DSNU-20-150-PPS-A 1908304 GTIN4052568108847

Name: FESTO ISO Pneumatic Air Cylinders DSNU-20-150-PPS-A 1908304 GTIN4052568108847
Brand: Airwolf Automation

Price Negotiable

Price: EXW USD30-50

MOQ: 1pc

Delivery Time: 7-10working days

Brand: FESTO

Product Description

FESTO ISO cylinder DSNU-20-150-PPS-A 1908304 GTIN4052568108847

About product

1.Good running performance and long service life.

2.The basic versions conform to ISO 6432, variants are based on these standards.

3.The drive has self-adjusting end-position cushioning.

4.Small to medium loads.

5.Low to medium speeds.

6.Medium impact energies.

7.No adjustment required.

8.Saves time.

9.Powerful.

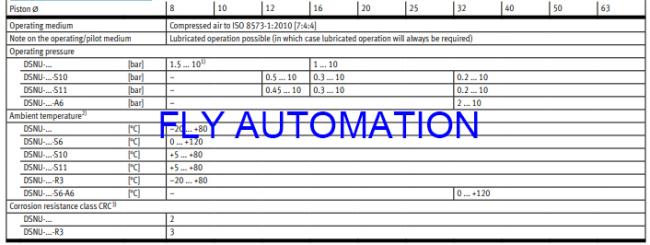

Technical Data

Stroke	150 mm
Piston diameter	20 mm
Piston rod thread	M8
Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	optional
Piston-rod end	Male thread
Design	Piston Piston rod Cylinder barrel
Variants	Piston rod at one end
Operating pressure	0.1 MPa ... 1 MPa
Operating pressure	1 bar ... 10 bar
Mode of operation	Double-acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1
Ambient temperature	-20°C-80°C
Cushioning length	15 mm
Basic weight for 0 mm stroke	186.8 g
Additional weight per 10 mm stroke	7.2 g
Type of mounting	With accessories
Pneumatic connection	G1/8
Note on materials	RoHS-compliant
Material cover	Wrought aluminium alloy Colourless anodised
Material seals	NBR TPE-U(PU)
Material piston rod	High-alloy stainless steel
Material cylinder barrel	High-alloy stainless steel
