FESTO Suction Cup Complete VASB-30-1/8-SI-B 1377637 GTIN4052568061906
Price:
EXW USD20-30
MOQ:
1pc
Delivery Time:
7-10working days
Brand:
FESTO
Product Description
FESTO Suction cup complete VASB-30-1/8-SI-B 1377637 GTIN4052568061906
About product
1.Picking up workpieces with smooth, impermeable surfaces.
2.Bellows-type suction cups can adapt to suit uneven, curved and inclined surfaces.
3.Can be used universally.
4.Long service life.
5.Gentle handling owing to soft material.
Technical Data
| Height compensator for suction cup | 13.9 mm |
| Nominal size | 3 mm |
| Suction cup diameter | 30 mm |
| Position of connection | Top |
| Mounting position | optional |
| Symbol | 00991485 |
| Suction cup shape | Round bellows 1.5 convolutions |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Product weight | 7 g |
| Type of mounting | Via vacuum port |
| Vacuum connection | G1/8 |
| Colour | Transparent |
| Material screw-in stud | Wrought aluminium alloy |
| Note on materials | RoHS-compliant |
| Material suction cup | VMQ (silicone) |

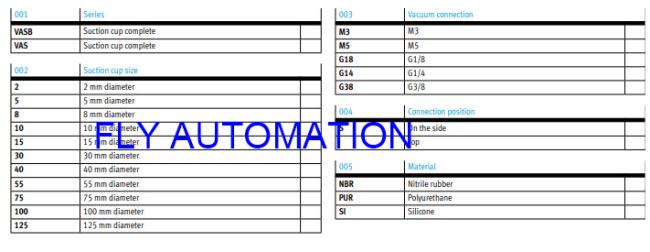

Type codes
A wide range of products with excellent prices. Please contact me!
