GTIN4052568207571 Pneumatic Solenoid Valves VSVA-B-M52-MZD-A1-1T1L-APP 560724
Price:
EXW USD100-150
MOQ:
1pc
Delivery Time:
7-10 working days
Brand:
FESTO
Product Description
FESTO Solenoid valve VSVA-B-M52-MZD-A1-1T1L-APP 560724 GTIN4052568207571
About product
Easy to install
Reduced costs for selection, ordering, assembly and commissioning
Secure mounting on a wall or H-rail
Manifold sub-bases can be extended using four screws, sturdy duct separation on metal support
Technical Data
| Valve function | 5/2-way, monostable |
| Type of actuation | Electric |
| Construction width | 26 mm |
| Standard nominal flow rate | 1100 l/min |
| pneumatic working port | Sub-base size 26 mm to ISO 15407-2 G1/4 |
| Operating voltage | 24V DC |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| KC mark | KC-EMV |
| Degree of protection | IP65 NEMA 4 |
| Nominal size | 9 mm |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting Non-detenting Covered |
| Type of piloting | Pilot actuated |
| Pilot air supply | External Internal |
| Flow direction | optional |
| Symbol | 00997391 |
| Measuring principle | Inductive |
| lap | Positive overlap |
| Signal status display | LED |
| Switching output | PNP |
| Sound pressure level | 85 dB(A) |
| Product weight | 264 g |
| Electrical connection | 4-pin Plugs To ISO 15407-2 |
| Sensor connection | Plug 3-pin M8x1 |
| Type of mounting | On sub-base |
| Note on materials | RoHS-compliant |
| Material seals | FPM NBR |
| Material housing | Die-cast aluminium PA |
| Material screws | Galvanised steel |
| Switching element function | N/C contact |

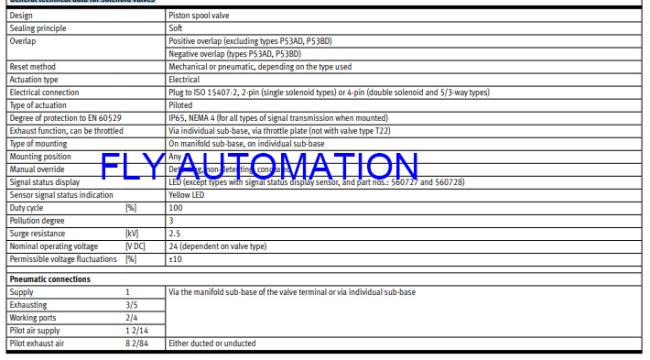

General technical data for solenoid valves
There are many models and types, welcome to enquiry!
