VMPA1-M1H-N-PI Festo Solenoid Valve 533348 GTIN4052568166496
Price:
EXW USD50-100
MOQ:
1pc
Delivery Time:
5-7 working days
Brand:
FESTO
Product Description
FESTO Solenoid valve VMPA1-M1H-N-PI 533348 GTIN4052568166496
About product
1.Secure wall mounting.
2.Easy to service thanks to replaceable valves and electronic modules.
3.Manual override either non-detenting, detenting or secured against unauthorised activation (concealed).
4.Fast troubleshooting thanks to LEDs on the valves.
Technical Data
| Valve function | 2x3/2-way, open, monostable |
| Type of actuation | Electric |
| Valve size | 10 mm |
| Operating voltage | 24V DC |
| Design | Piston gate valve |
| Type of reset | Pneumatic spring |
| Approval | c UL us - Recognized (OL) |
| Degree of protection | IP65 To IEC 60529 |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting Non-detenting |
| Type of piloting | Pilot actuated |
| Flow direction | Non-reversible |
| Symbol | 00991812 |
| lap | Positive overlap |
| Signal status display | yes |
| Suitability for vacuum | no |
| Product weight | 56 g |
| Type of mounting | With through-hole |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material housing | Die-cast aluminium |

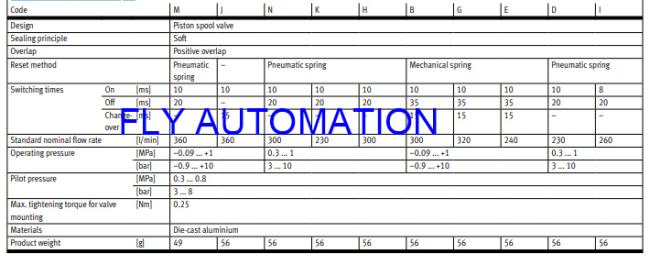

Technical data – Valve width 10 mm
There are many models and types, welcome to enquiry!
