153037 FESTO Pneumatic Tube Fittings Push In Connector QS-6-4 GTIN4052568031404
Price:
EXW USD1-2
MOQ:
1 PCS
Delivery Time:
7-10 working days
Brand:
FESTO
Product Description
FESTO Push-in connector QS-6-4 153037 GTIN4052568031404
About product
1.Wide selection of push-in fittings for pneumatic applications with a temperature range up to 80°C and a pressure range up to 14 bar.
2.The standard tubing combined with the Festo push-in connector is suitable for compressed air and vacuum.
Product Technical Data
| Size | Standard |
| Nominal size | 2.8 mm |
| Mounting position | optional |
| Size of pack | 10 |
| Design | Push-pull principle |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Product weight | 6.4 g |
| Pneumatic connection, port 1 | For tubing outside diameter of 6 mm |
| Pneumatic connection, port 2 | For tubing outside diameter of 4 mm |
| Colour of release ring | Blue |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |

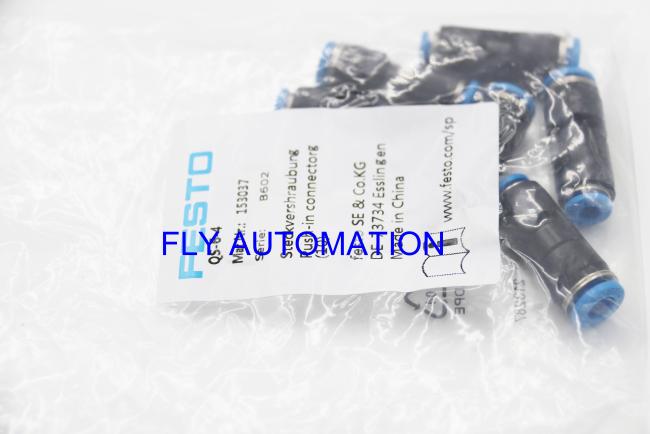

Package picture
There are so many models, best price and fast delivery time. Welcome to enquiry.
