GTIN4052568031428 Pneumatic Tube Fittings PBT Push In Connector QS-10-8 153039
Price:
EXW USD1-2
MOQ:
1 PCS
Delivery Time:
7-10 working days
Brand:
FESTO
Product Description
FESTO Push-in connector QS-10-8 153039 GTIN4052568031428
About product
1.Color:Blue
2.Note on operating and pilot medium:Lubricated operation possible
3.Note on materials: RoHS-compliant
4.Material tubing clamp component:High-alloy stainless steel
5.Material release ring:POM
Product Technical Data
| Size | Standard |
| Nominal size | 6.5 mm |
| Mounting position | optional |
| Design | Push-pull principle |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 14 g |
| Pneumatic connection, port 1 | For tubing outer diameter of 10 mm |
| Pneumatic connection, port 2 | For tubing outside diameter of 8 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |

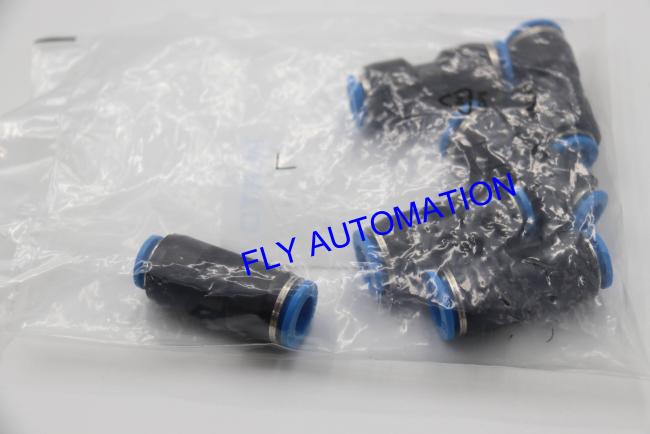

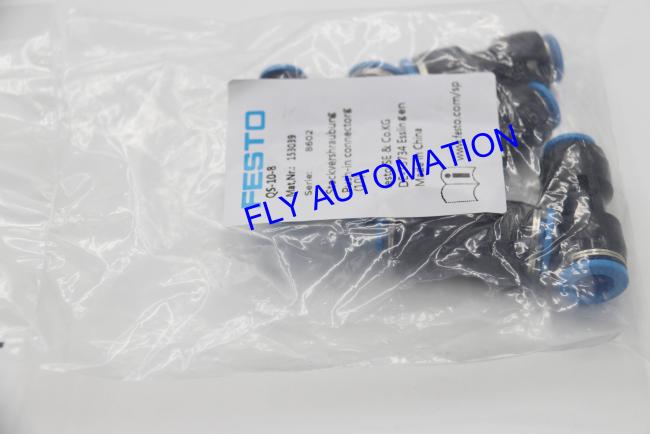

Package product pictures
There are so many models, best price and fast delivery time. Welcome to enquiry and contact with me.Wait for you!
