Festo Push In Fitting QS-G3/8-8 186100 GTIN4052568039172
Festo Push-in fitting QS-G3/8-8 186100 GTIN4052568039172
About product
Color: blue
Material tubing clamp component:High-alloy stainless steel
Note on materials:RoHS-compliant
Material housing:Brass Nickel-plated
Corrosion resistance class CRC:1 - Low corrosion stress
Note on operating and pilot medium:Lubricated operation possible
Product Technical Data
| Size | Standard |
| Nominal size | 7 mm |
| Type of seal on screw-in stud | Sealing ring |
| Mounting position | optional |
| Size of pack | 10 |
| Design | Push-pull principle |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-80°C |
| Nominal torque | 15.5 Nm |
| Product weight | 22 g |
| Pneumatic connection, port 1 | Male thread G3/8 |
| Pneumatic connection, port 2 | For tubing outside diameter of 8 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | Brass Nickel-plated |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |

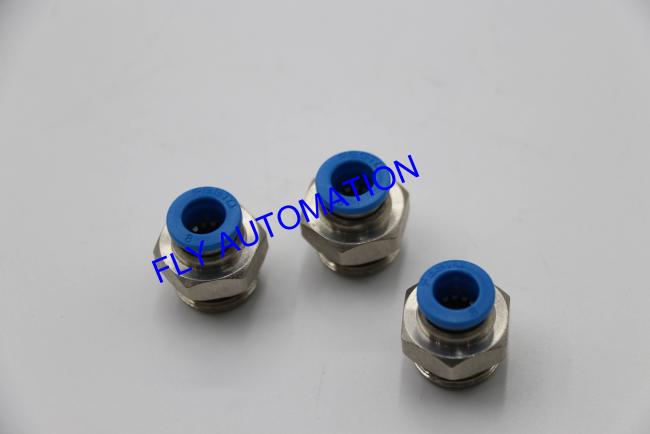

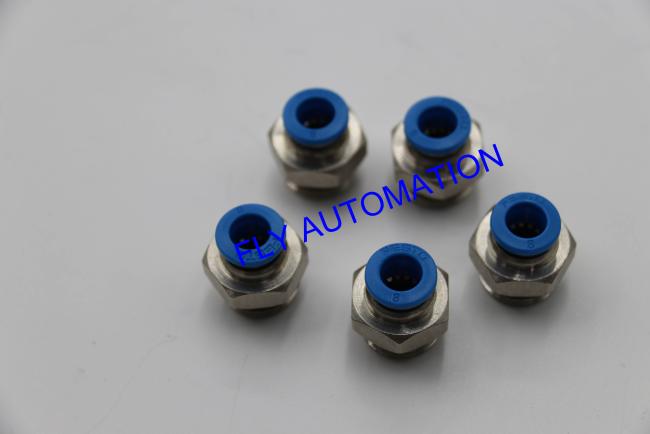

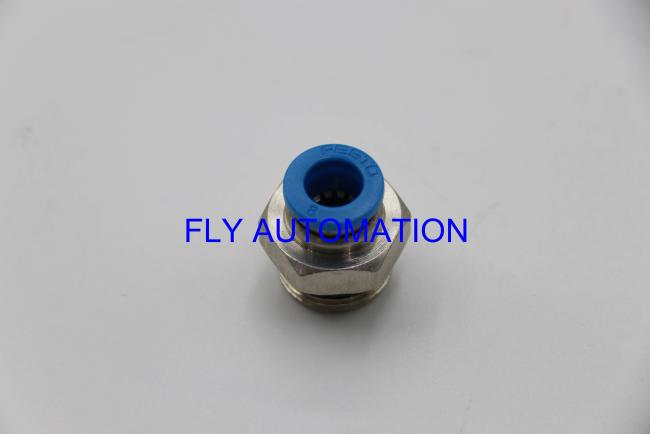

Product pictures
There are so many models, best price and fast delivery time. Welcome to enquiry and contact with me.Wait for you!
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
