Festo Push-In L-Fitting QSL-G1/8-6 186117 GTIN4052568004989
Price:
EXW USD3-4
MOQ:
1 PCS
Delivery Time:
7-10 working days
Brand:
FESTO
Product Description
Festo Push-in L-fitting QSL-G1/8-6 186117 GTIN4052568004989
About product
It can be rotated once it has been fitted.
Pneumatic connection, port 1:Male thread G1/8.
Pneumatic connection, port 2:For tubing outer diameter of 6 mm.
Ambient temperature:-10°C-80°C
Mounting position:optional
Product Technical Data
| Size | Standard |
| Nominal size | 4.2 mm |
| Type of seal on screw-in stud | Sealing ring |
| Mounting position | optional |
| Size of pack | 10 |
| Design | Push-pull principle |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-80°C |
| Nominal torque | 7 Nm |
| Product weight | 14 g |
| Pneumatic connection, port 1 | Male thread G1/8 |
| Pneumatic connection, port 2 | For tubing outside diameter of 6 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |

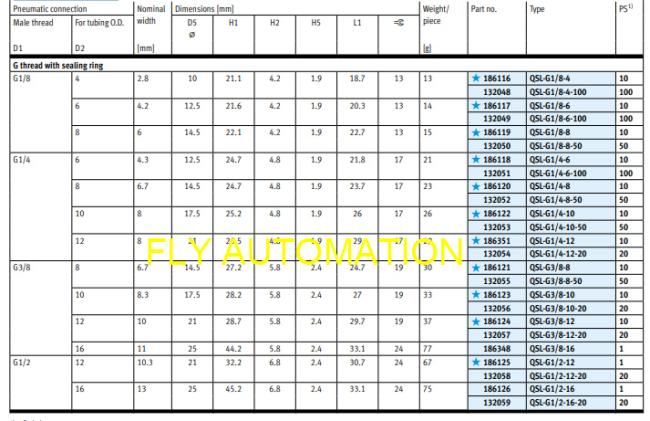

Dimensions and ordering data
There are so many models.Welcome to enquiry and contact with me.Wait for you!
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
