GTIN4052568039271 Festo Push-In L-Fitting QSL-G1/8-8 186119
Festo Push-in L-fitting QSL-G1/8-8 186119 GTIN4052568039271
About product
Nominal size:6 mm
Type of seal on screw-in stud:Sealing ring
LABS (PWIS) conformity:VDMA24364-B1/B2-L
Design:Push-pull principle
Pneumatic connection, port 1:Male thread G1/8
Pneumatic connection, port 2:For tubing outside diameter of 8 mm
Product Technical Data
| Size | Standard |
| Nominal size | 6 mm |
| Type of seal on screw-in stud | Sealing ring |
| Mounting position | optional |
| Size of pack | 10 |
| Design | Push-pull principle |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-80°C |
| Product weight | 15 g |
| Pneumatic connection, port 1 | Male thread G1/8 |
| Pneumatic connection, port 2 | For tubing outside diameter of 8 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |

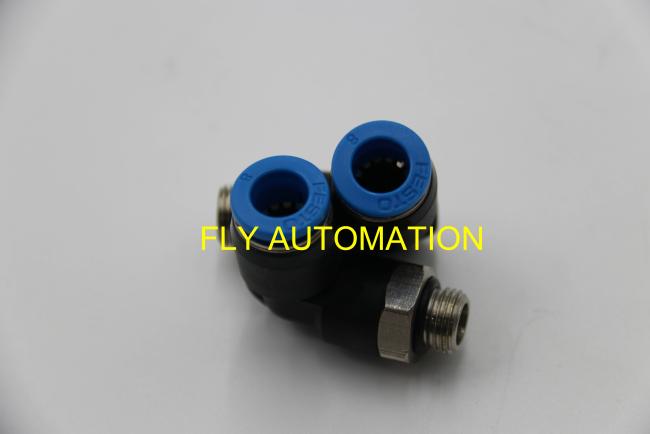

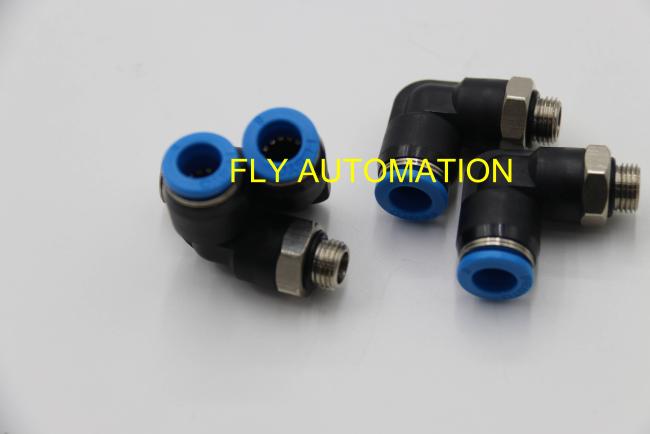

Product pictures
