FESTO Round Cylinder DSNU-32-130-P-A Pneumatic Air Cylinders 193992
FESTO Round cylinder DSNU-32-130-P-A 193992 Pneumatic Air Cylinders
About Product
1.Good running performance and long service life.
2.Piston rod with male and female thread.
3.Extensive range of accessories makes it possible to install the cylinder virtually anywhere.
4.The basic versions conform to ISO 6432, variants are based on these standards.
5.Stainless steel piston rod.
Technical data
| Stroke | 130mm |
| Piston diameter | 32mm |
| Mounting position | optional |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |
| Protection against torque/guide | Square piston rod |
| Mode of operation | Double-acting |
| Ambient temperature | -20°C-120°C |
| Cushioning length | 14 mm |
| Basic weight for 0 mm stroke | 370.5 g |
| Additional weight per 10 mm stroke | 15.5 g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |

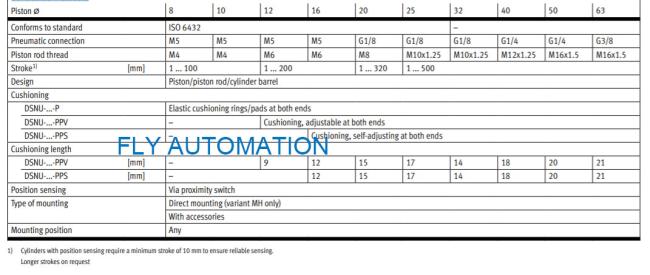

General technical data
There are so many models,please contact with me.
