FESTO ISO Cylinder DSBC-63-70-PPVA-N3 2125493 Pneumatic Air Cylinders
Price:
EXW USD100-120
MOQ:
1pc
Delivery Time:
7-10 working days
Brand:
FESTO
Product Description
FESTO ISO cylinder DSBC-63-70-PPVA-N3 2125493 Pneumatic Air Cylinders
About product
Extensive range of accessories makes it possible to install the cylinder virtually anywhere
The variants can be configured according to individual needs using a modular product system
Material piston:Wrought aluminium alloy
Material piston rod:High-alloy steel
Color:silver
Technical Data
| Stroke | 70mm |
| Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 22 mm |
| Basic weight for 0 mm stroke | 1740 g |
| Additional weight per 10 mm stroke | 62 g |
| Type of mounting | Either: Via female thread With accessories |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium, coated |
| Material piston seal | TPE-U(PU) |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Cushioning piston material | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material bearing | POM |
| Material collar screws | Galvanised steel |

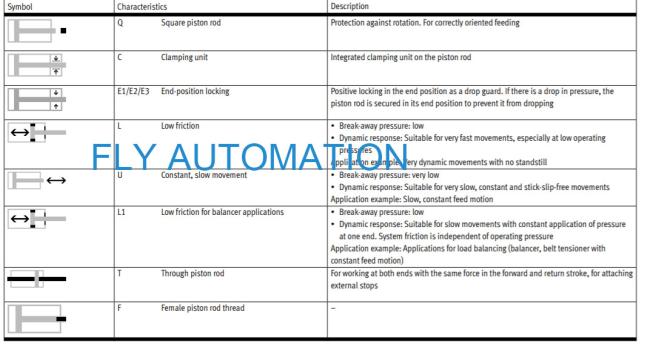

Variants from the modular product system
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
There are so many kinds. Please contact with me.
