156882 Pneumatic Air Cylinders ADVUL-32-60-P-A FESTO Compact Cylinder
FESTO Compact cylinder ADVUL-32-60-P-A 156882 Pneumatic Air Cylinders
About product
Mounting position:optional
Protection against torque/guide:Guide rod with yoke
Pneumatic connection:G1/8
Material cylinder barrel:Wrought aluminium alloy
Material piston rod:High-alloy stainless steel
Technical Data
| Stroke | 60mm |
| Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston Piston rod |
| Position detection | Via proximity switch |
| Symbol | 00991737 |
| Variants | Piston rod at one end |
| Protection against torque/guide | Guide rod with yoke |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Pneumatic connection | G1/8 |
| Material collar screws | Galvanised steel |
| Material cover | Wrought aluminium alloy |
| Material dynamic seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | Wrought aluminium alloy |

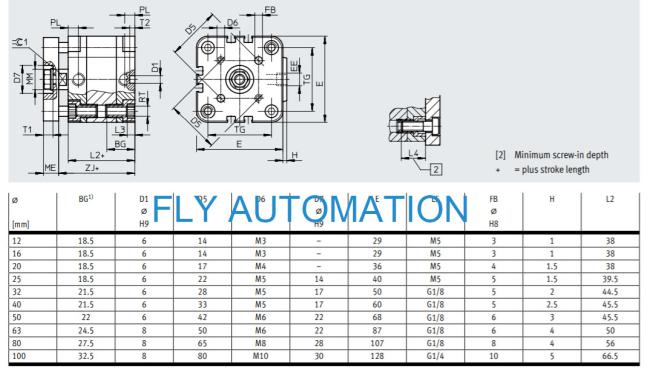

Dimensions – Basic cylinders
