FESTODFM-20-50-P-A-GF Guided Drive Pneumatic Air Cylinders 170844
Price:
EXW USD60-80
MOQ:
1pc
Delivery Time:
10-15working days
Brand:
FESTO
Product Description
FESTO Guided drive DFM-20-50-P-A-GF 170844 Pneumatic Air Cylinders
About product
With plain-bearing guide: high rigidity thanks to large-diameter guide rods and four plain-bearing bushes
With recirculating ball bearing guide: for applications involving torque loads
Note on materials: RoHS-compliant
Technical Data
| Stroke | 50mm |
| Piston diameter | 20 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Guide | Plain-bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |
| Symbol | 00991737 |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Product weight | 1158 g |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |

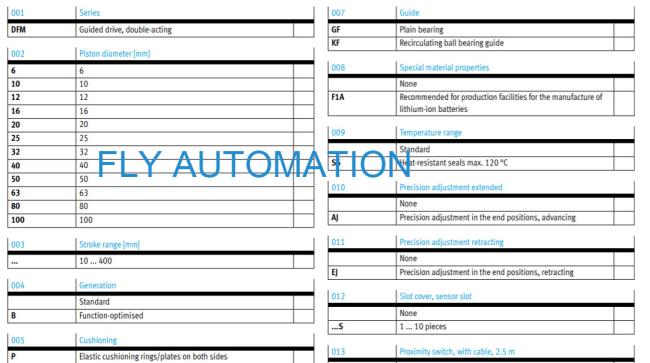

Type codes
There are so many kinds. Please contact with me!
