FESTO ISO Cylinder DSNU-25-200-PPV-A 19251 Pneumatic Air Cylinders
Price:
EXW USD20-30
MOQ:
1pc
Delivery Time:
10-12 working days
Brand:
FESTO
Product Description
FESTO ISO cylinder DSNU-25-200-PPV-A 19251 Pneumatic Air Cylinders
About product
Mode of operation:Double-acting
Ambient temperature: -20°C-80°C
Extensive range of accessories makes it possible to install the cylinder virtually anywhere
Technical Data
| Stroke | 200 mm |
| Piston diameter | 25 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 17 mm |
| Basic weight for 0 mm stroke | 238 g |
| Additional weight per 10 mm stroke | 11 g |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Colourless anodised |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |

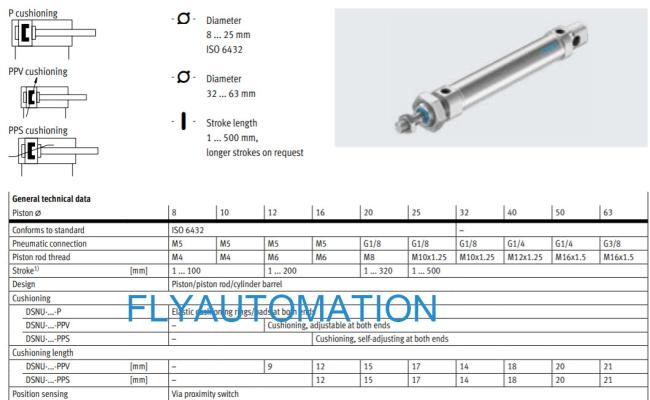

Datasheet
There are so many models,please contact with me.
