FESTO Round Cylinder DSNU-32-200-PPV-A 196027 Pneumatic Air Cylinders
Price:
EXW USD25-35
MOQ:
1pc
Delivery Time:
10-15 working days
Brand:
FESTO
Product Description
FESTO Round cylinder DSNU-32-200-PPV-A 196027 Pneumatic Air Cylinders
About product
Stroke:200 mm
Piston diameter:32mm
Material cylinder barrel:High-alloy stainless steel
Color:Silver
LABS (PWIS) conformity:VDMA24364-B1/B2-L

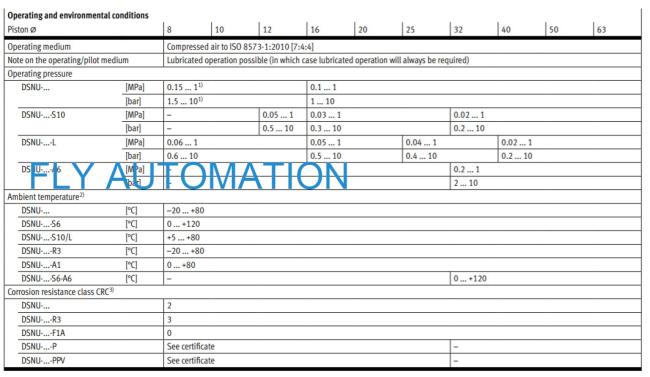

Technical Data
| Stroke | 200 mm |
| Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 14 mm |
| Moving mass | 301g |
| Product weight | 680 g |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | High-alloy stainless steel |
Datasheet
Attention
1.Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2.Any order is welcome. we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions.
please feel free to contact us.
There are so many models,please contact with me.
