FESTO ISO Cylinder DSBC-63-100-PPVA-N3 1383582 Pneumatic Air Cylinders
Price:
EXW USD100-120
MOQ:
1pc
Delivery Time:
8-12 working days
Brand:
FESTO
Product Description
FESTO ISO cylinder DSBC-63-100-PPVA-N3 1383582 Pneumatic Air Cylinders
About product
Cushioning:Pneumatic cushioning, adjustable at both ends
Position detection:Via proximity switch
Symbol:00991235
Mode of operation:Double-acting
Ambient temperature: -20°C-80°C
Technical Data
| Stroke | 100 mm |
| Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 22 mm |
| Basic weight for 0 mm stroke | 1740 g |
| Additional weight per 10 mm stroke | 62 g |
| Type of mounting | Either: Via female thread With accessories |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium, coated |
| Material piston seal | TPE-U(PU) |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Cushioning piston material | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material bearing | POM |
| Material collar screws | Galvanised steel |
The Core Range off ers you the best value for your automation tasks.

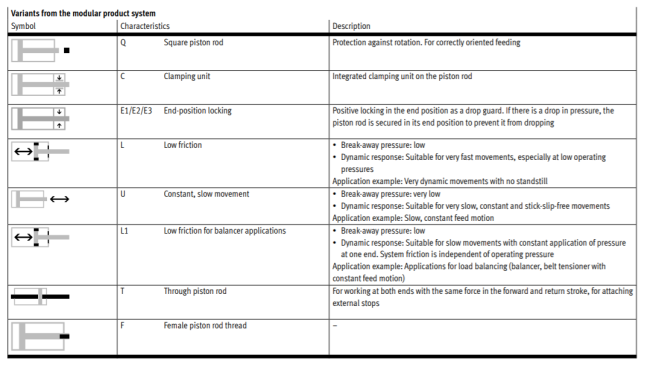

Characteristics
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
