ATOS Direct Operated Double Solenoid Directional Valves SDKE-1711 10S SDKE-1716 10S
Price:
45-168USD
MOQ:
1
Delivery Time:
3-12working days
Brand:
ATOS
Product Description
ATOS direct operated Double Solenoid directional valves SDKE-1711 10S SDKE-1716 10S
Order Codes:
SDKE-1713 10S
SDKE-1751/2 10S
SDKE-1711 10S
SDKE-1715 10S
SDKE-1710 10S
SDKE-1716 10S
SDKE-1714 10S
SDKE-1751/2 10S
SDKE-1711 10S
SDKE-1715 10S
SDKE-1710 10S
SDKE-1716 10S
SDKE-1714 10S
Mounting surface: ISO 4401 size 10
Max flow: 150 l/min
Max pressure: 350 bar
Insulation class: H (180°C) for DC coils F (155°C) for AC coils
Protection degree to DIN EN 60529: IP65
Relative duty factor: 100%
Ambient temperature:Standard execution = -30°C +70°C /PE option = -20°C-+ 70°C /BT option = -40°C- +70°C
Operating pressure: Ports P ,A,B: 350 bar; Port T210 bar for DC version (250 bar with option M); 160 bar for AC version
Maximum flow: 150 l/min, see operating limits at section
Flame resistant with water: NBR, HNBR HFC
| Assembly position / location | Any position for all valves except for type- 170* (without springs) that must be instaed with hori- zontal axis if operated by impulses | ||
| Subplate surface finishing | Roughness index Ra 0,4 - flatness ratio 0,01/100 (ISO 1101) | ||
| MTTFd values according to EN ISO 13849 | 150 years, for further details see technical table P007 | ||
| Ambient temperature | Standard execution = -30°C +70°C /PE option = -20°C-+ 70°C /BT option = -40°C- +70°C | ||
| Seals, recommended fluid temperature | NBR seals (standard) = -20C + +80*C, with HFC hydraulic fluids = -20*C +50C FKM seals (/PE option)= -20°C + +80C HNBR seals (/BT option)= -40°C - +60°C, with HFC hydraulic fluids= -40°C to +50°C | ||
| Recommended viscosity | 15-100 mm2/s - max allowed range 2.8 + 500 mm2/s | ||
| Max fluid contamination level | IS04406 class 20/18/15 NAS1638 class 9, see also fliter section at www.atos .com or KTF Ccatalog | ||
| Hydraulic fluid | Suitable seals type | Classification | Ref. Standard |
| Mineral oils | NBR, FKM, HNBR | HL, HLP, HLPD, HVLP, HVLPD | DIN 51524 |
| Flame resistant without water | FKM | HFDU, HFDR | ISO 12922 |
| Flame resistant with water | NBR, HNBR | HFC | |
| Flow direction | As shown in the symbols of table | ||
| Operating pressure | Ports P ,A,B: 350 bar; Port T210 bar for DC version (250 bar with option M); 160 bar for AC version | ||
| Rated flow | See diagrams Q/Ap at section | ||
| Maximum flow | 150 l/min, see operating limits at section | ||
Spool type, two or three position direct operated valves with threaded solenoids.
Solenoids are made by:
• wet type screwed tube, different for AC and DC power supply, with integrated
manual override pin
• interchangeable coils, specific for AC or DC power supply, easily replaceable
without tools - see section 5 for available voltages
Standard coils protection IP65.
Optional coils are available with IP67 AMP Junior Timer, Deutsch, lead wire
connections (options XJ, XK, XS) or with North American Standard Certification
CURUS, without connector (option XUL).

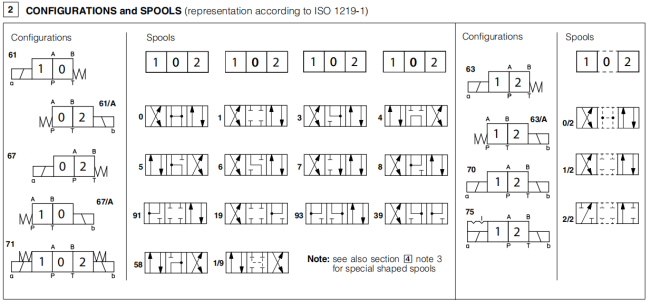

Wide range of interchangeable spools , see section 2.
The valve body is 3 chamber type made by shell-moulding casting with wide
internal passages ensuring low pressure drops
