ATOS DC24V ISO4401 Hydraulic Solenoid Directional Control Valve SDHE-0710 10S SDHE-0718 10S
ATOS Hydraulic DC24V ISO4401 Solenoid directional valves type SDHE-0710 10S SDHE-0718 10S

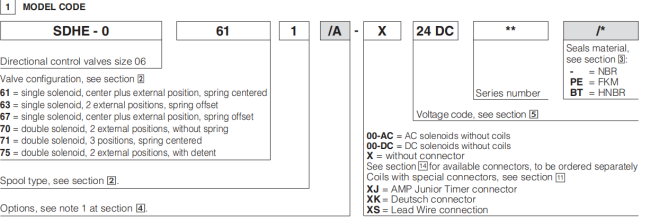

Order Codes:
SDHE-0710 10S
SDHE-0711 10S
SDHE-0713 10S
SDHE-0715 10S
SDHE-0717 10S
SDHE-0714 10S
SDHE-0716 10S
SDHE-0718 10S
direct operated, high performances, ISO 4401 size 06
Spool type, two or three position direct operated valves with high performance
threaded solenoids certified according the North American standard cURUS.

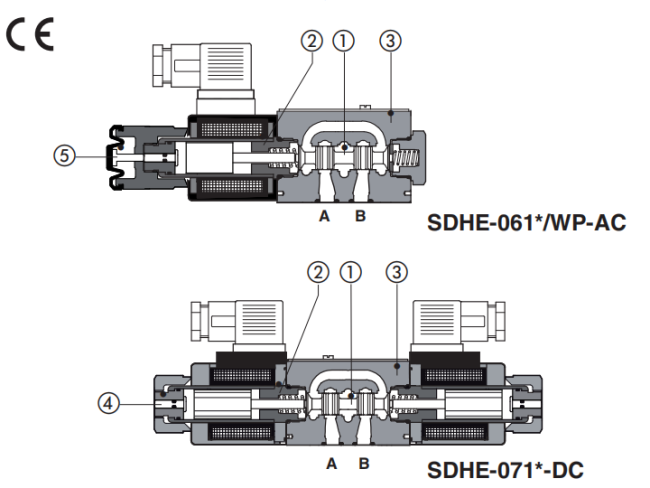

Solenoids ② are made by:
● wet type screwed tube, different for AC and DC power supply, with integrated manual override pin ④

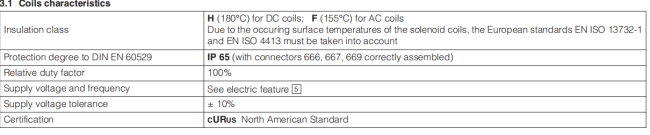

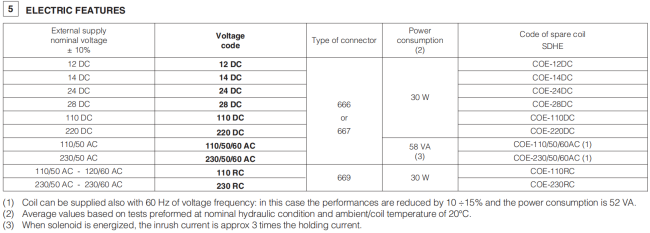

● interchangeable coils, specific for AC or DC power supply, easily replaceable without tools - see section 5 for available voltages

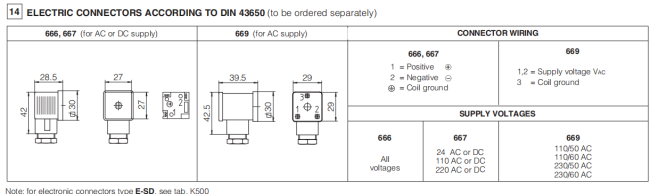

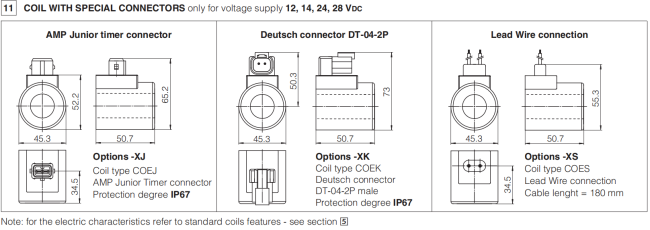

Standard coils protection IP65 optional coils with IP67 AMP Junior Timer, Deutsch
or lead wire connections.

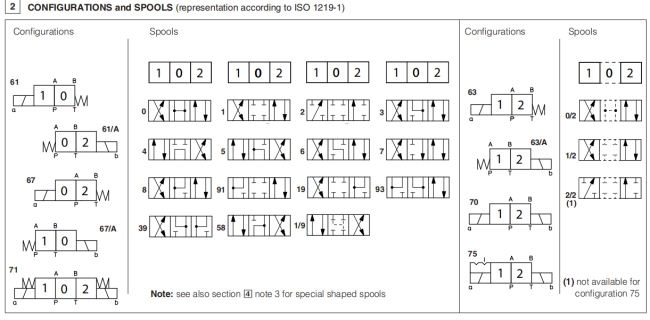

Wide range of interchangeable spools ①,
see section 2.
The valve body ③ is 3 chamber type
made by shell-moulding casting with wide
internal passages ensuring low pressure drops.
| Any position | ||
| Roughness index Ra 0,4 - flatness ratio 0,01/100 (ISO 1101) | ||
| 150 years, for further details see technical table P007 | ||
| Standard execution = -30°C +70°C /PE option = -20°C+ +70°C /BT option = -40°C+ +70°C | ||
| NBR seals (standard)= -20°C十+80°C, with HFC hydraulic fluids = -20°C+ +50°C FKM seals (/PE option)= -20°C一+80°C HNBR seals (/BT option) = -40°C + +60°C, with HFC hydraulic fluids = -40°C + +50°C | ||
| 15:100 mm?/s - max allowed range 2.8 + 500 mm/s | ||
| ISO4406 class 20/18/15 NAS1638 class 9, see also fiter section at www .atos .com or KTF catalog | ||
| Suitable seals type | Classification | Ref. Standard |
| NBR, FKM, HNBR | HL, HLP, HLPD, HVLP, HVLPD | DIN 51524 |
| FKM | HFDU, HFDR | ISO 12922 |
| NBR, HNBR | HFC | |
| As shown in the symbols of table | ||
| Ports P,A,B: 350 bar; PortT 210 bar for DC version; 160 bar for AC version | ||
| See diagrams Q/op at section | ||
| 80 1/min, see operating limits at section | ||

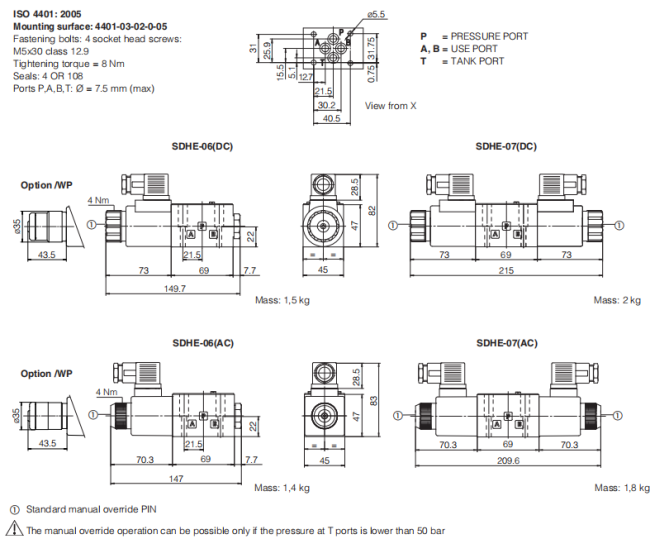

Mounting surface: ISO 4401 size 06
Max flow: 80 l/min
Max pressure: 350 bar
MAIN CHARACTERISTICS, SEALS AND HYDRAULIC
