IMI Norgren 8010750 8010751 8010850 8010851 3/2 way Solenoid Valve G1/4 G1/2

Order Codes:

Technical Data:

*1) When ordering please indicate solenoid, voltage and current type (frequency)

*2) Port 5 cannot be throttled

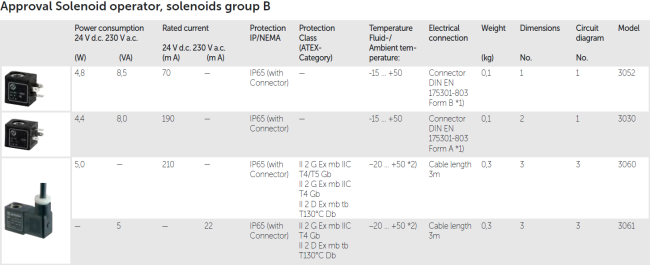

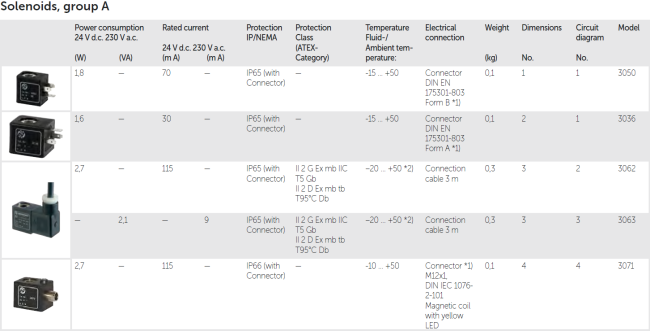

Solenoids:

Standard voltages (±10%) 24 V DC, 230 V AC. Standard voltages (±10%) 24 V d.c., 230 V a.c., other voltages on request.
*1) Connectors not included in the scope of delivery, see accessories
*2) Maximum +40°C for battery installation

Ex e mb IIC T4 Gb Ex tb IllC T120°C Db I IP 65 (with cable gland) Standard voltages (±10%) 24 V d.c., 230 V a.c., other voltages on request.
*1) Connectors not included in the scope of delivery, see accessories
*2) Maximum +40°C for battery installation

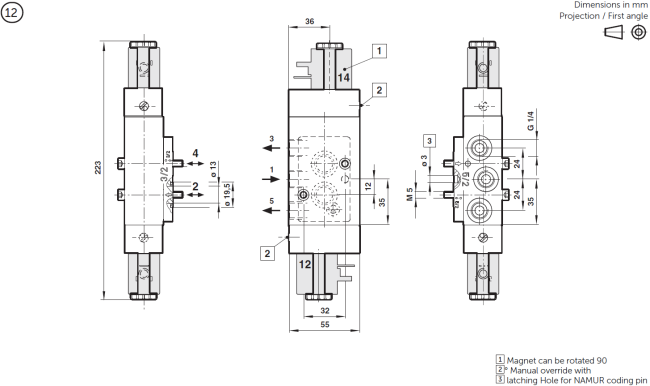

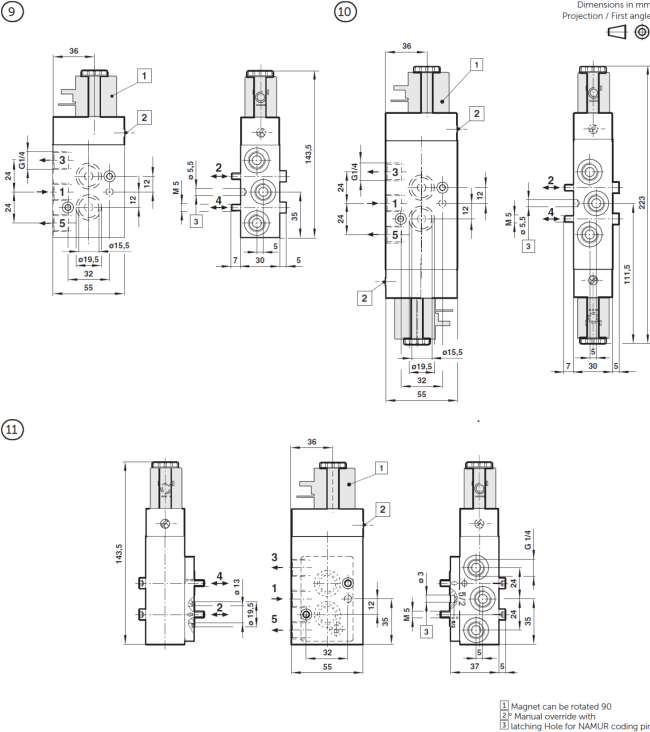

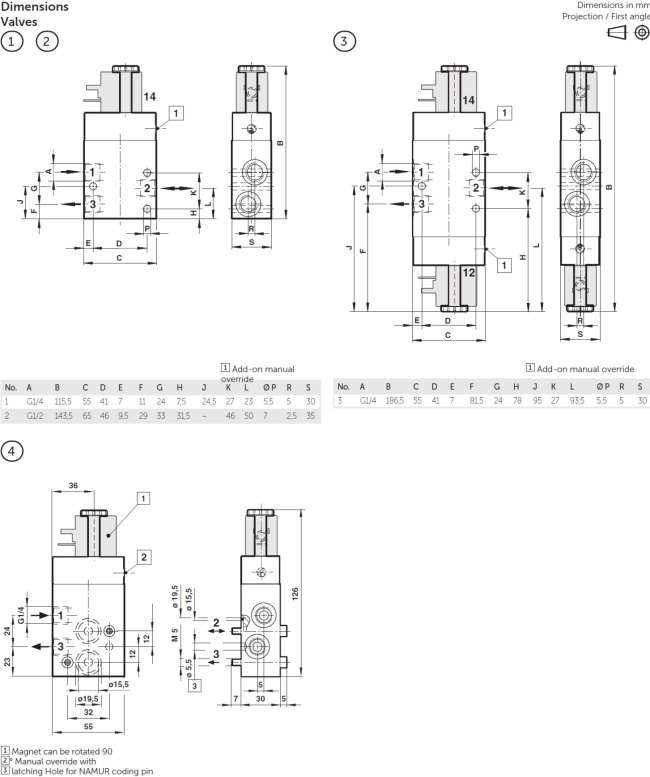

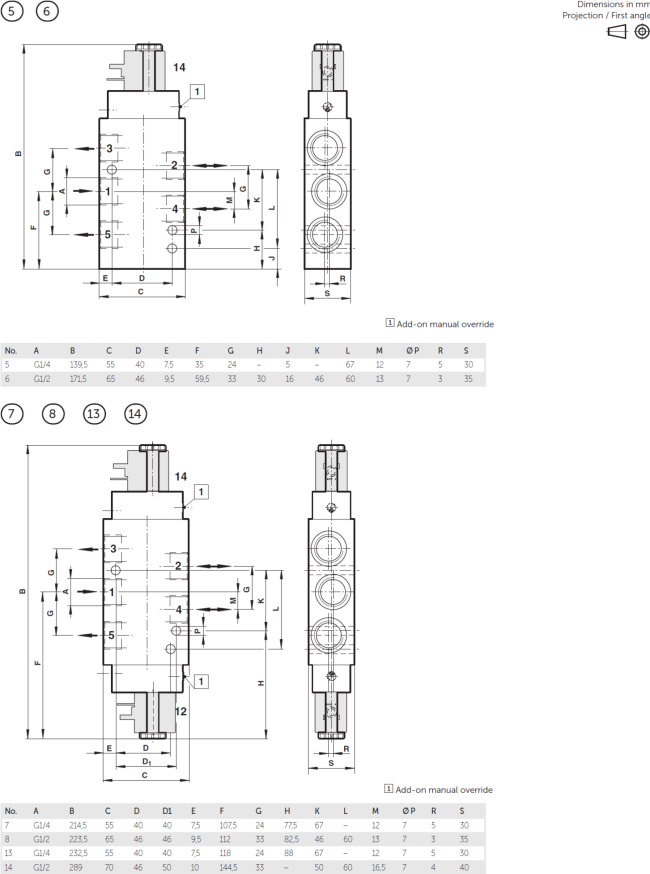

Dimensions:
