SMC 1/4" Aluminum Alloy Diaphragm Type Single Doube Acting 3 Port Lock-up Valve IL201-02 IL220-02 IL211-02B IL201-N02 IL220-N02 IL211-F02 IL211-N02B IL211-F02B
Price:
EXW USD20-40
MOQ:
1pc
Delivery Time:
3-10 working days
Brand:
SMC or OEM
Product Description
SMC 1/4" Aluminum Alloy diaphragm type Single Doube Acting 3 port Lock-up valve IL201-02 IL220-02 IL211-02B IL201-N02 IL220-N02 IL211-F02 IL211-N02B IL211-F02B
1.The lock-up valve is used if any air source or air supply piping line failure occurs in theair operated process control line.
2. Single acting, Double acting: Retains pressure at the operating area as emergency operation until the air source is recovered to its normal state.
3. 3 Port: Changes the supply port if a trouble occurs.
2. Single acting, Double acting: Retains pressure at the operating area as emergency operation until the air source is recovered to its normal state.
3. 3 Port: Changes the supply port if a trouble occurs.
Order codes:
| IL201-02 | IL220-02 |
| IL201-N02 | IL220-N02 |
| IL201-F02 | IL220-F02 |
| IL201-02B | IL220-02B |
| IL201-N02B | IL220-N02B |
| IL201-F02B | IL220-F02B |
| IL211-02 | |
| IL211-N02 | |
| IL211-F02 | |
| IL211-02B | |
| IL211-N02B | |
| IL211-F02B |

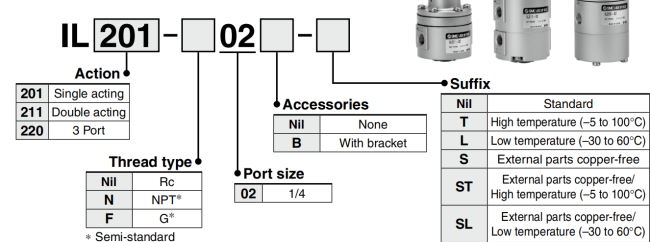

How to order:

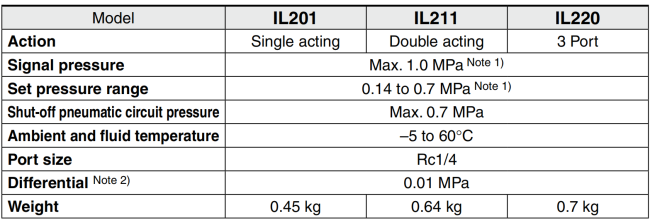

Specifications:

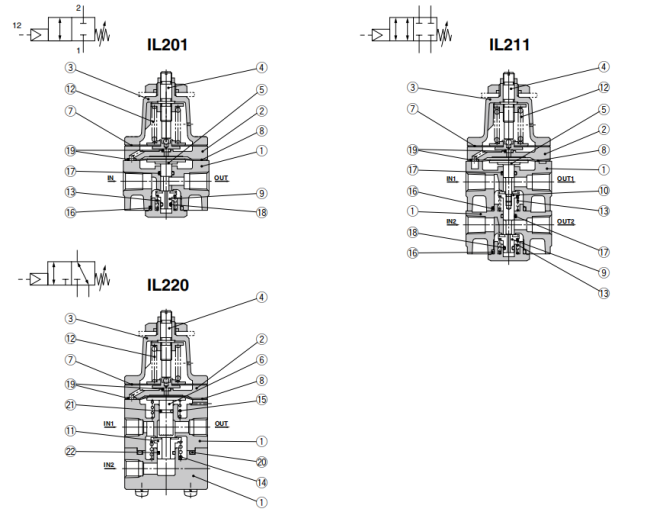

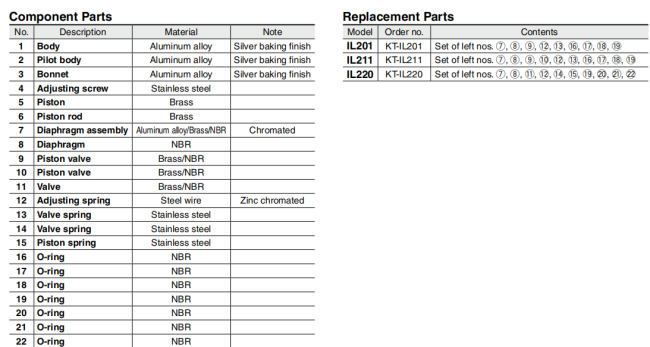

Construction:

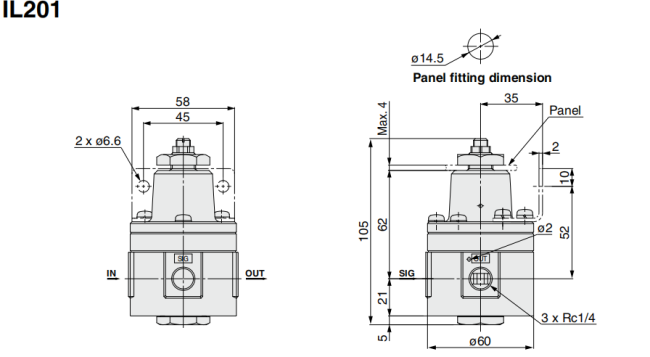

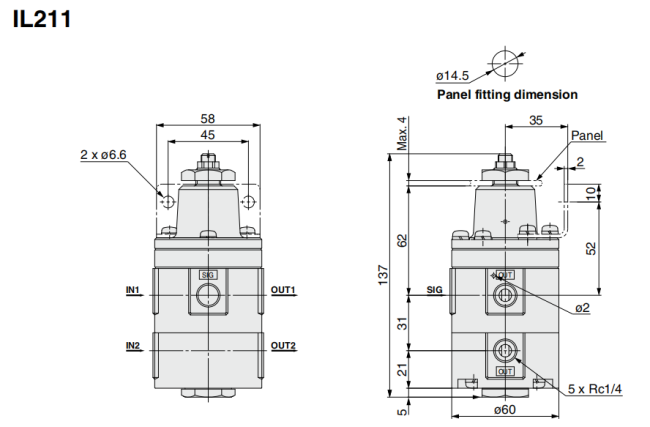

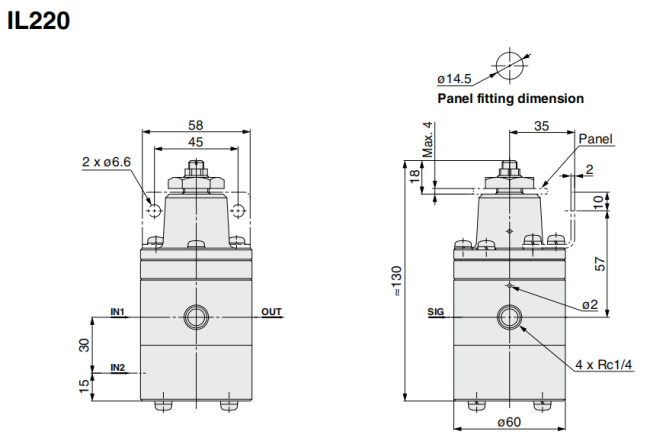

Dimensions:
