Parker ISO15552 P1F Pneumatic Cylinder 32-125mm Bore 5-2000mm Stroke
Price:
EXW USD15-165
MOQ:
1pc
Delivery Time:
8-10 working days
Brand:
Parker or OEM
Product Description
Parker ISO15552 P1F Double acting pneumatic cylinder 32-125mm Bore 5-2000mm stroke -20°C to +80°C P1F-S032MC-0070-0000 P1F-S040MC-0080-0000 P1F-S050MC-0125-0000 P1F-S063MC-0150-0000
Order Codes:
| P1F-S032MC-0025-0000 | P1F-S040MC-0025-0000 | P1F-S050MC-0025-0000 | P1F-S063MC-0025-0000 |
| P1F-S032MC-0040-0000 | P1F-S040MC-0040-0000 | P1F-S050MC-0040-0000 | P1F-S063MC-0040-0000 |
| P1F-S032MC-0050-0000 | P1F-S040MC-0050-0000 | P1F-S050MC-0050-0000 | P1F-S063MC-0050-0000 |
| P1F-S032MC-0060-0000 | P1F-S040MC-0060-0000 | P1F-S050MC-0060-0000 | P1F-S063MC-0060-0000 |
| P1F-S032MC-0070-0000 | P1F-S040MC-0070-0000 | P1F-S050MC-0070-0000 | P1F-S063MC-0070-0000 |
| P1F-S032MC-0075-0000 | P1F-S040MC-0075-0000 | P1F-S050MC-0075-0000 | P1F-S063MC-0075-0000 |
| P1F-S032MC-0080-0000 | P1F-S040MC-0080-0000 | P1F-S050MC-0080-0000 | P1F-S063MC-0080-0000 |
| P1F-S032MC-0100-0000 | P1F-S040MC-0100-0000 | P1F-S050MC-0100-0000 | P1F-S063MC-0100-0000 |
| P1F-S032MC-0125-0000 | P1F-S040MC-0125-0000 | P1F-S050MC-0125-0000 | P1F-S063MC-0125-0000 |
| P1F-S032MC-0130-0000 | P1F-S040MC-0130-0000 | P1F-S050MC-0130-0000 | P1F-S063MC-0130-0000 |
| P1F-S032MC-0135-0000 | P1F-S040MC-0135-0000 | P1F-S050MC-0135-0000 | P1F-S063MC-0135-0000 |
| P1F-S032MC-0140-0000 | P1F-S040MC-0140-0000 | P1F-S050MC-0140-0000 | P1F-S063MC-0140-0000 |
| P1F-S032MC-0150-0000 | P1F-S040MC-0150-0000 | P1F-S050MC-0150-0000 | P1F-S063MC-0150-0000 |
| P1F-S032MC-0160-0000 | P1F-S040MC-0160-0000 | P1F-S050MC-0160-0000 | P1F-S063MC-0160-0000 |
| P1F-S032MC-0200-0000 | P1F-S040MC-0200-0000 | P1F-S050MC-0200-0000 | P1F-S063MC-0200-0000 |
| P1F-S032MC-0250-0000 | P1F-S040MC-0250-0000 | P1F-S050MC-0250-0000 | P1F-S063MC-0250-0000 |
| P1F-S032MC-0320-0000 | P1F-S040MC-0320-0000 | P1F-S050MC-0320-0000 | P1F-S063MC-0320-0000 |
| P1F-S032MC-0400-0000 | P1F-S040MC-0400-0000 | P1F-S050MC-0400-0000 | P1F-S063MC-0400-0000 |
| P1F-S032MC-0500-0000 | P1F-S040MC-0500-0000 | P1F-S050MC-0500-0000 | P1F-S063MC-0500-0000 |
| P1F-S032MC-0600-0000 | P1F-S040MC-0600-0000 | P1F-S050MC-0600-0000 | P1F-S063MC-0600-0000 |
| P1F-S032MC-0700-0000 | P1F-S040MC-0700-0000 | P1F-S050MC-0700-0000 | P1F-S063MC-0700-0000 |
| P1F-S032MC-0750-0000 | P1F-S040MC-0750-0000 | P1F-S050MC-0750-0000 | P1F-S063MC-0750-0000 |
| P1F-S032MC-0800-0000 | P1F-S040MC-0800-0000 | P1F-S050MC-0800-0000 | P1F-S063MC-0800-0000 |
| P1F-S032MC-0900-0000 | P1F-S040MC-0900-0000 | P1F-S050MC-0900-0000 | P1F-S063MC-0900-0000 |
| P1F-S032MC-1000-0000 | P1F-S040MC-1000-0000 | P1F-S050MC-1000-0000 | P1F-S063MC-1000-0000 |
| P1F-S032MC-1100-0000 | P1F-S040MC-1100-0000 | P1F-S050MC-1100-0000 | P1F-S063MC-1100-0000 |
| P1F-S032MC-1200-0000 | P1F-S040MC-1200-0000 | P1F-S050MC-1200-0000 | P1F-S063MC-1200-0000 |
| P1F-S032MC-1300-0000 | P1F-S040MC-1300-0000 | P1F-S050MC-1300-0000 | P1F-S063MC-1300-0000 |
| P1F-S032MC-1400-0000 | P1F-S040MC-1400-0000 | P1F-S050MC-1400-0000 | P1F-S063MC-1400-0000 |
| P1F-S032MC-1500-0000 | P1F-S040MC-1500-0000 | P1F-S050MC-1500-0000 | P1F-S063MC-1500-0000 |
| P1F-S032MC-1600-0000 | P1F-S040MC-1600-0000 | P1F-S050MC-1600-0000 | P1F-S063MC-1600-0000 |
| P1F-S032MC-1700-0000 | P1F-S040MC-1700-0000 | P1F-S050MC-1700-0000 | P1F-S063MC-1700-0000 |
| P1F-S032MC-1800-0000 | P1F-S040MC-1800-0000 | P1F-S050MC-1800-0000 | P1F-S063MC-1800-0000 |
| P1F-S032MC-1900-0000 | P1F-S040MC-1900-0000 | P1F-S050MC-1900-0000 | P1F-S063MC-1900-0000 |
| P1F-S032MC-2000-0000 | P1F-S040MC-2000-0000 | P1F-S050MC-2000-0000 | P1F-S063MC-2000-0000 |
| P1F-S080MC-0025-0000 | P1F-S100MC-0025-0000 | P1F-S125MC-0025-0000 | |
| P1F-S080MC-0040-0000 | P1F-S100MC-0040-0000 | P1F-S125MC-0040-0000 | |
| P1F-S080MC-0050-0000 | P1F-S100MC-0050-0000 | P1F-S125MC-0050-0000 | |
| P1F-S080MC-0060-0000 | P1F-S100MC-0060-0000 | P1F-S125MC-0060-0000 | |
| P1F-S080MC-0070-0000 | P1F-S100MC-0070-0000 | P1F-S125MC-0070-0000 | |
| P1F-S080MC-0075-0000 | P1F-S100MC-0075-0000 | P1F-S125MC-0075-0000 | |
| P1F-S080MC-0080-0000 | P1F-S100MC-0080-0000 | P1F-S125MC-0080-0000 | |
| P1F-S080MC-0100-0000 | P1F-S100MC-0100-0000 | P1F-S125MC-0100-0000 | |
| P1F-S080MC-0125-0000 | P1F-S100MC-0125-0000 | P1F-S125MC-0125-0000 | |
| P1F-S080MC-0130-0000 | P1F-S100MC-0130-0000 | P1F-S125MC-0130-0000 | |
| P1F-S080MC-0135-0000 | P1F-S100MC-0135-0000 | P1F-S125MC-0135-0000 | |
| P1F-S080MC-0140-0000 | P1F-S100MC-0140-0000 | P1F-S125MC-0140-0000 | |
| P1F-S080MC-0150-0000 | P1F-S100MC-0150-0000 | P1F-S125MC-0150-0000 | |
| P1F-S080MC-0160-0000 | P1F-S100MC-0160-0000 | P1F-S125MC-0160-0000 | |
| P1F-S080MC-0200-0000 | P1F-S100MC-0200-0000 | P1F-S125MC-0200-0000 | |
| P1F-S080MC-0250-0000 | P1F-S100MC-0250-0000 | P1F-S125MC-0250-0000 | |
| P1F-S080MC-0320-0000 | P1F-S100MC-0320-0000 | P1F-S125MC-0320-0000 | |
| P1F-S080MC-0400-0000 | P1F-S100MC-0400-0000 | P1F-S125MC-0400-0000 | |
| P1F-S080MC-0500-0000 | P1F-S100MC-0500-0000 | P1F-S125MC-0500-0000 | |
| P1F-S080MC-0600-0000 | P1F-S100MC-0600-0000 | P1F-S125MC-0600-0000 | |
| P1F-S080MC-0700-0000 | P1F-S100MC-0700-0000 | P1F-S125MC-0700-0000 | |
| P1F-S080MC-0750-0000 | P1F-S100MC-0750-0000 | P1F-S125MC-0750-0000 | |
| P1F-S080MC-0800-0000 | P1F-S100MC-0800-0000 | P1F-S125MC-0800-0000 | |
| P1F-S080MC-0900-0000 | P1F-S100MC-0900-0000 | P1F-S125MC-0900-0000 | |
| P1F-S080MC-1000-0000 | P1F-S100MC-1000-0000 | P1F-S125MC-1000-0000 | |
| P1F-S080MC-1100-0000 | P1F-S100MC-1100-0000 | P1F-S125MC-1100-0000 | |
| P1F-S080MC-1200-0000 | P1F-S100MC-1200-0000 | P1F-S125MC-1200-0000 | |
| P1F-S080MC-1300-0000 | P1F-S100MC-1300-0000 | P1F-S125MC-1300-0000 | |
| P1F-S080MC-1400-0000 | P1F-S100MC-1400-0000 | P1F-S125MC-1400-0000 | |
| P1F-S080MC-1500-0000 | P1F-S100MC-1500-0000 | P1F-S125MC-1500-0000 | |
| P1F-S080MC-1600-0000 | P1F-S100MC-1600-0000 | P1F-S125MC-1600-0000 | |
| P1F-S080MC-1700-0000 | P1F-S100MC-1700-0000 | P1F-S125MC-1700-0000 | |
| P1F-S080MC-1800-0000 | P1F-S100MC-1800-0000 | P1F-S125MC-1800-0000 | |
| P1F-S080MC-1900-0000 | P1F-S100MC-1900-0000 | P1F-S125MC-1900-0000 | |
| P1F-S080MC-2000-0000 | P1F-S100MC-2000-0000 | P1F-S125MC-2000-0000 |

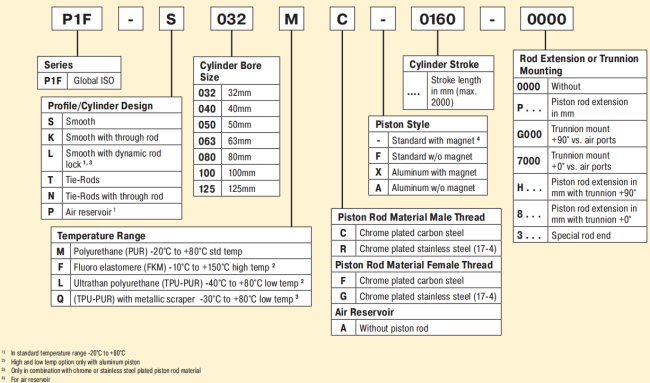

HOW TO ORDER:
Datasheet:
Product type Standard cylinder according to ISO 15552
Bore size 32 - 125 mm
Stroke length 5 - 2000 mm
Versions Double acting
Cushioning Adjustable air cushioning
Position sensing Proximity sensor
Installation ISO cylinder and piston rod mountings
