XQ Series Aluminum Pneumatic Mechanical Valve with 1/4" Port Size and 3/2way 5/2way Positions for Directional Control
Price:
3-10USD
MOQ:
1 piece
Delivery Time:
1-3 work days
Brand:
SXPC AIRWOLF or OEM
Product Description
XQ Series Aluminum XQ230410 XQ230610 XQ250410 XQ250610 3/2 way 5/2 way Mechanical Valve 1/4" 1/8"
Order Code:
| Item Code | Port Size | Positions |
| XQ230410 | 1/8" | 3/2 way |
| XQ230610 | 1/4" | 3/2 way |
| XQ250410 | 1/8" | 5/2 way |
| XQ250610 | 1/4" | 5/2 way |
Mechanical valves usually use the externa forces from cams or rams to change the fluid flowing directions.When the external forces disappear the valves reset automatically. There are several control types: plunger, roller plunger, roller lever and one way roller lever, 2-Pos. 3-Port and 2-Pos. 5-Port. The P port and R port of a 2-Pos. 3-Port valve can be exchanged so as to change the valve from normally closed to normally open.
When a mechanical valve is in stalled, the moving direction of the ram should be in angle against the valve and the plunger should be pressed down a S distance (the direction-changed stroke) as shown in diagram (X 230410).

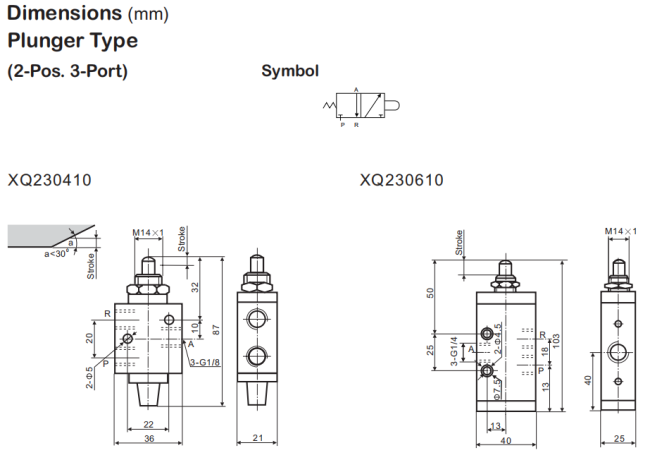

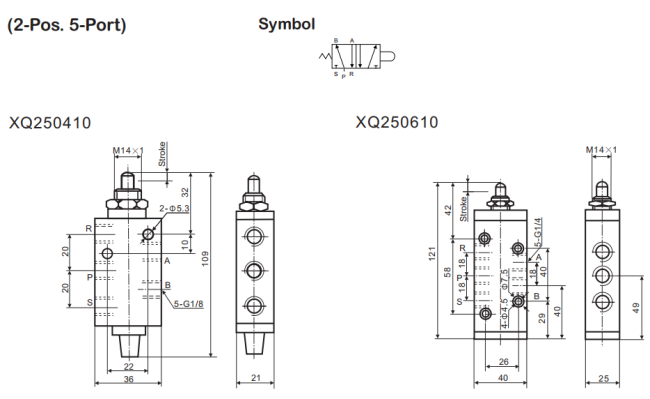

Dimensions:
