OMAL S.S.304/316 Coaxial Valve with 10 bar Max Pressure and -10~+60℃ Temperature Range for Air Flow Control

Price Negotiable
Price: 70-180USD
MOQ: 1 piece
Delivery Time: 1-3 work days
Brand: OMAL AIRWOLF or OEM
Product Description

OMAL Pneumatic S.S.304/316 Coaxial Valve form 3/8" to 2" Port Size VC0E00003-VC0E00009 VA0E00003-VA0E00009 VD0E00003-VD0E00009 VC0V00003-VC0V00009 VA0V00003-VA0V00009 VD0V00003-V90V00009



How to order:

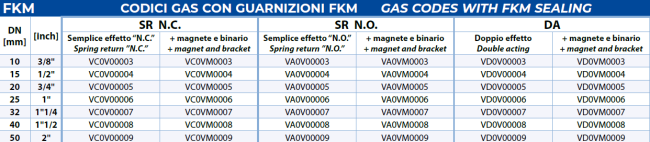

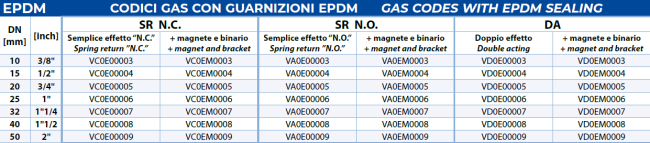

Order Codes:

VC0E00003 VA0E00003 VD0E00003 VC0V00003 VA0V00003 VD0V00003
VC0E00004 VA0E00004 VD0E00004 VC0V00004 VA0V00004 VD0V00004
VC0E00005 VA0E00005 VD0E00005 VC0V00005 VA0V00005 VD0V00005
VC0E00006 VA0E00006 VD0E00006 VC0V00006 VA0V00006 VD0V00006
VC0E00007 VA0E00007 VD0E00007 VC0V00007 VA0V00007 VD0V00007
VC0E00008 VA0E00008 VD0E00008 VC0V00008 VA0V00008 VD0V00008
VC0E00009 VA0E00009 VD0E00009 VC0V00009 VA0V00009 VD0V00009

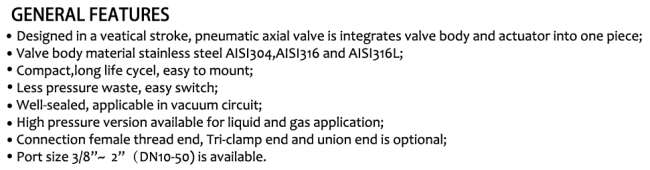

Genral Features:

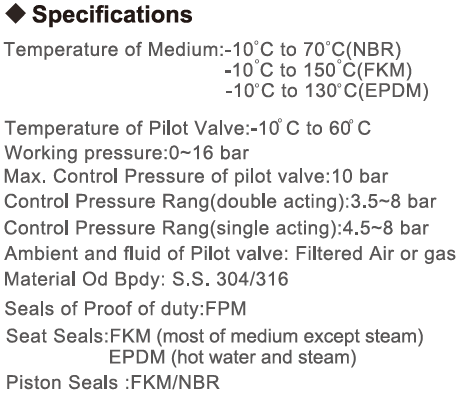

Specifications:

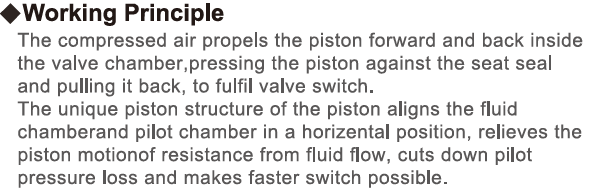

Working Principle:

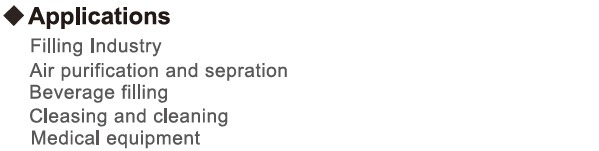

Applications:

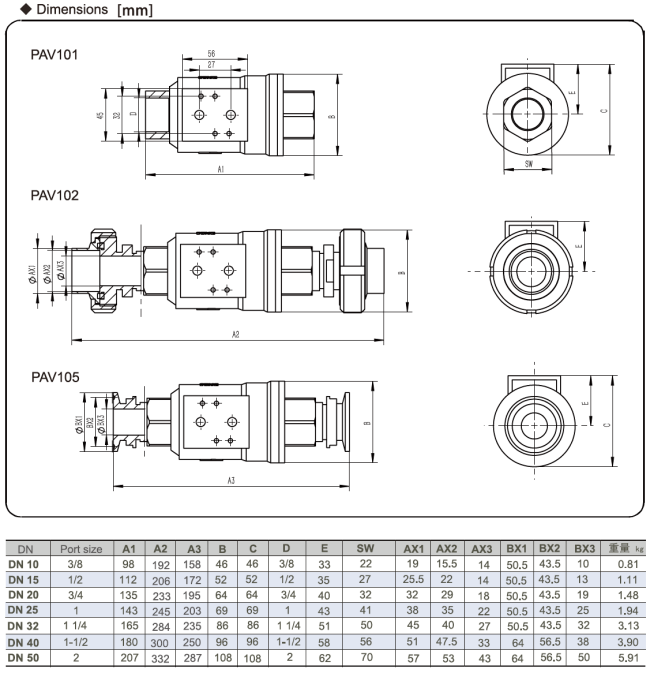

Dimensions:
