4A410-15, 4A420-15 AIRTAC 4A400 Series 5/2 way Air Valve 1/4" 3/8"
4A410-15, 4A420-15 AIRTAC 4A400 Series 5/2 way Air Valve 1/4" 3/8"
- Structure in sliding column mode: good tightness and sensitive reaction.
- Double air control valves have memory function.
- Three position air valves have three kinds of central function for your choice.
- Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
- No need to add oil for lubrication.
- Integrate with the manifold to save installation space.
Order Codes:
| Type | Port Size | Positions | Valve Type |
|---|---|---|---|
| 4A410-15 | 1/2" | 5/2 way | Single Air Control |
| 4A420-15 | 1/2" | 5/2 way | Double Air Control |
Specification:
| Model | 4A410-15 | 4A420-15 |
| Fluid | Air(to be filtered by 40μm filter element) | |
| Acting | Exterior control | |
| Port size [Note1] | In=Out=Exhaust=1/2" | |
| Orifice size(Cv) [Note4] |
4A410-15,4A420-15:48.0mm²(Cv=2.82) 4A430C-15:40.0mm²(Cv=2.35) |
|
| Valve type | 5 port 2 position | |
| Operating pressure | 0.15~0.8MPa(21~114psi) | |
| Proof pressure | 1.2MPa(175psi) | |
| Temperature | -20~70 °C | |
| Material of body | Aluminum alloy | |
| Lubrication [Note2] | Not required | |
| Max. frequency [Note3] | 3 cycle/sec | |
| Weight (g) | 555 | 685 |
[Note1] PT thread, G thread and NPT thread are available.
[Note2] Once lubricated air is used, continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent are recommended.
[Note3] The maximum actuation frequency is in the no-load state.
[Note4] Equivalent orifice S and Cv are all calculated from the flow rate data.
Flow Chart:
Structure:

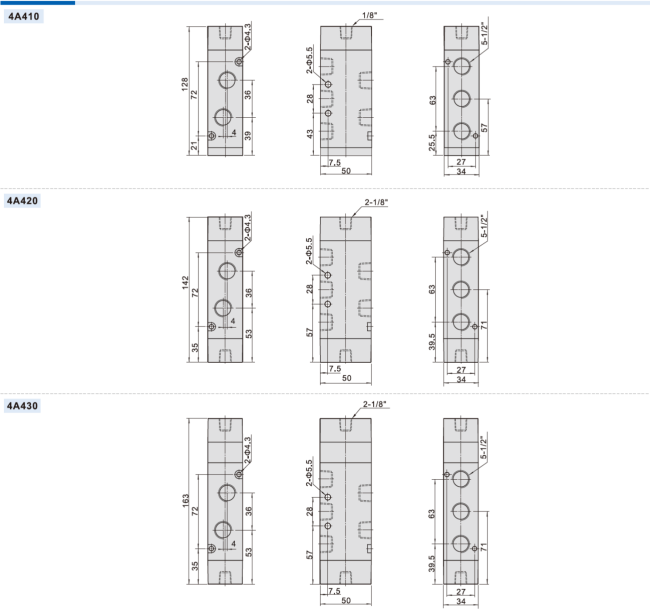

Dimensions:
