CJAC AD3625, AD3650, AD4225, AD4250, AD4275 AD Series Adjustable Damper Shock Absorber
CJAC AD3625, AD3650, AD4225, AD4250, AD4275 AD Series Adjustable Damper Shock Absorber
The CJAC AD Series comprises industrial hydraulic shock absorbers engineered for precise deceleration control in automation systems. These adjustable devices are designed to absorb kinetic energy, providing smooth and linear deceleration for moving loads. Key technical specifications vary by model; for instance, the AD-2550 model features a 50 mm stroke, can handle a maximum effective mass of 720 kg, and has an energy absorption capacity of 98 Nm per cycle. Other models like the AD-1425 and AD-2540 offer different strokes and capacities to suit various applications, from robotic arms to precision instruments. The series is characterized by its robust construction, often with a steel body, and is designed to operate reliably within a temperature range of -10°C to 80°C.
Order Code:

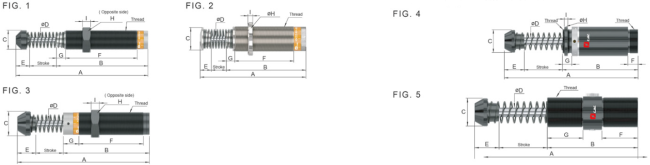

| Model | Thread | Stroke (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | Illustration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AD3625 | M36x1.5 | 25 | 184 | 33.5 | 35.5 | 10 | 26 | 103 | 10 | 46 | 15 | — | — | 1 |
| AD3650 | M36x1.5 | 50 | 247 | 37.1 | 35.5 | 10 | 26 | 134 | 17 | 46 | 15 | — | — | 1 |
| AD4225 | M42x1.5 | 25 | 186.5 | 177.5 | 44.5 | 12 | 34 | 99 | 28.5 | 50 | 15 | — | — | 3 |
| AD4250 | M42x1.5 | 50 | 241 | 157 | 44.5 | 12 | 34 | 117.5 | 28.5 | 50 | 15 | — | — | 3 |
| AD4275 | M42x1.5 | 75 | 301.5 | 157.5 | 44.5 | 12 | 39 | 148 | 28.5 | 50 | 15 | — | — | 3 |
Specifications:
| Model | Stroke (mm) | Maximum absorbed energy Nm(Er) | Absorbed energy per hour Nm(Er) | Maximum effective weight kg(Me) | Highest impact speed m/s(v) | Weight (g) |
|---|---|---|---|---|---|---|
| AD3625 | 25 | 150 | 81,000 | 1400 | 3.0 | 940 |
| AD3650 | 50 | 300 | 100,000 | 2400 | 3.0 | 1,120 |
| AD4225 | 25 | 260 | 125,000 | 3,000 | 3.5 | 1,260 |
| AD4250 | 50 | 500 | 150,000 | 4,000 | 4.5 | 1,480 |
| AD4275 | 75 | 750 | 150,000 | 6,000 | 4.5 | 1,700 |
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) 1 year warranty |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
