AIRTAC 4V430C-15, 4V430E-15, 4V430P-15 4V400 Series 5/2 way, 5/3 way Electric Solenoid Valve 1/2"
AIRTAC 4V430C-15, 4V430E-15, 4V430P-15 4V400 Series 5/2 way, 5/3 way Electric Solenoid Valve 1/2"
The AIRTAC 4V400 Series is a robust line of 5/3-way pneumatic solenoid valves engineered for heavy-duty industrial automation. These valves are characterized by their large flow capacity and compact, durable aluminum alloy body construction. A key feature of the 5/3-way models (such as the 4V430C, 4V430E, and 4V430P) is the availability of three distinct center position functions: closed center (all ports blocked), exhaust center (working ports exhausted), and pressure center (all ports pressurized), providing critical control flexibility for double-acting actuators. They operate effectively within a pressure range of 0.15 to 0.8 MPa, can withstand proof pressures up to 1.5 MPa, and are designed for temperatures from -20°C to 70°C. With options for internal or external pilot operation and a variety of standard voltages (including AC and DC), these valves offer reliable performance in demanding applications like packaging machinery and automated production lines.
| Type | Port Size | Positions | Valve Type |
|---|---|---|---|
| 4V430C-15 | 1/2" | 5/3 way | Double Solenoid Closed Center |
| 4V430E-15 | 1/2" | 5/3 way | Double Solenoid Exhaust Center |
| 4V430P-15 | 1/2" | 5/3 way | Double Solenoid Pressure Center |
Symbol:
Specification:
| Model | 4V430C-15 | 4V430E-15 | 4V430P-15 |
|---|---|---|---|
| Fluid | Air(to be filtered by 40μm filter element) | ||
| Acting | Internal pilot or external pilot | ||
| Port size [Note1] | In=Out=Exhaust=1/2" | ||
| Orifice size(Cv) [Note4] |
4V410-15,4V420-15:48.0mm²(Cv=2.82) 4V430C-15:40.0mm²(Cv=2.35) |
||
| Valve type | 5 port 3 position | ||
| Operating pressure | 0.15~0.8MPa(21~114psi) | ||
| Proof pressure | 1.2MPa(175psi) | ||
| Temperature | -20~70℃ | ||
| Material of body | Aluminum alloy | ||
| Lubrication [Note2] | Not required | ||
| Max. frequency [Note3] | 3 cycle/sec | ||
| Weight (g) | 770 | ||
[Note1] PT thread, G thread and NPT thread are available.
[Note2] Once lubricated air is used, continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent are recommended.
[Note3] The maximum actuation frequency is in the no-load state.
[Note4] Equivalent orifice S and Cv are all calculated from the flow rate data.

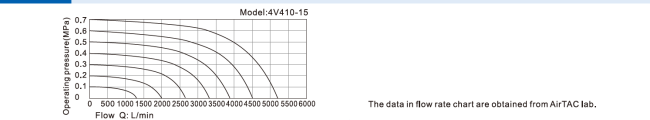

Flow Chart:
Structure:
Dimensions:
Quality Standards:
