K34R6-8, K34R6-8D, K34R6-8L, K34R6-8DD Sunrise Nielsen HV Series 4/3 way Hand Rotary Valve 1/4"
Price:
5-6USD
MOQ:
1 piece
Delivery Time:
1-7 work days
Brand:
Sunrise, Nielsen, AIRWOLF or OEM
Product Description
K34R6-8, K34R6-8D, K34R6-8L, K34R6-8DD Sunrise Nielsen HV Series 4/3 way Hand Rotary Valve 1/4"
Feature
1.Three position four way Hand Switching K34R6/K34R8 reversing valve hand rotary valve is controlled by human or machine, to switch the direction of air flow.
2.The material of valve body: Aluminum alloy.
3.There are three connecting types for K34R6, bottom, back and front side, and each side.
4.Different thread types can be offered according to customers requirements, e.g.: PT, NP
Order Codes:
| Type | Port Size | Positions | Installation |
|---|---|---|---|
| K34R6-8 | 1/4" | 4/3 way | Four Side Pipe |
| K34R6-8D | 1/4" | 4/3 way | Bottom Pipe |
| K34R6-8L | 1/4" | 4/3 way | Both Side Pipe |
| K34R6-8DD | 1/4" | 4/3 way | Double Bottom Pipe |
Symbol:
Specification:
| Model | K34R6-8 | K34R6-8D | K34R6-8L | K34R6-8DD |
| Fluid | Air for hand rotating valve | |||
| Acting | Manual control | |||
| Port size | In=Out=G1/4” | |||
| Valve type | 4/3 way | |||
| Pressure range | 0.15-0.8MPa | |||
| Proof pressure | 1.5MPa | |||
| Temperature | -10℃~60℃ | |||

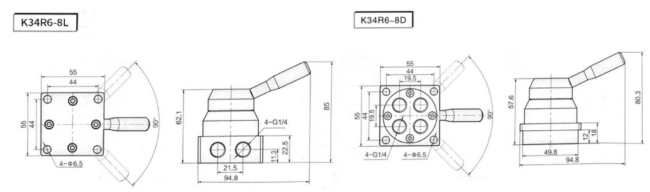

Dimensions:
![]()
Quality Standards:
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.
Samples:
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
After-sale service:
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Competitive Advantage:
| Our product features: | Our Services Guarantee: |
|---|---|
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) 1 year warranty |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
