AirTAC CM3PF-06, CM3PP-06, CM3PM-06, CM3HS-06 CM3 Series 3/2 way Control Valve 1/8"
AirTAC CM3PF-06, CM3PP-06, CM3PM-06, CM3HS-06 CM3 Series 3/2 way Control Valve 1/8"
The AIRTAC CM3 Series is a versatile line of mechanical control valves designed for precise directional control in pneumatic systems. These valves are primarily configured as 3-port, 2-position (3/2) units. They are engineered to operate effectively within a pressure range of 0 to 1.0 MPa and can withstand a proof pressure of 1.5 MPa, functioning reliably in a wide temperature spectrum from -20°C to 70°C. A key feature of the series is its variety of actuator types, which can be broadly categorized into mechanically actuated models for position detection or limit switching, and manually operated models with diverse control joint designs like push-buttons and levers for direct human control. Constructed with an aluminum alloy body and featuring a shut-off structure, these valves provide excellent sealing, require no lubrication, and support multiple mounting options for flexible installation.
Order Codes:
| Item Code | Port Size | Positions | Model |
|---|---|---|---|
| CM3PF-06 | 1/8" | 3/2 way | Flat Type |
| CM3PP-06 | 1/8" | 3/2 way | Protruding Type |
| CM3PM-06 | 1/8" | 3/2 way | Mushroom Type |
| CM3HS-06 | 1/8" | 3/2 way | Selector Type |
Symbol:
Specification:
| Model | CM3□-06 |
| Operating | External control |
| Fluid | Air (to be filtered by 40 μm filter element) |
| Pressure range | 0~1.0MPa (0~10bar) (0~145psi) |
| Proof pressure | 1.5MPa (15bar) (215psi) |
| Temperature | -20~70℃ |
| Valve type [Note1] | 3 port 2 position |
| Orifice size | 2.5mm² |
| Cv | 0.14 |
| Port size [Note2] | 1/8" |
| Material of body | Aluminum Alloy |
[Note1] HD series are 5/3 way.
[Note2] PT thread, G thread and NPT thread are available
Structure:

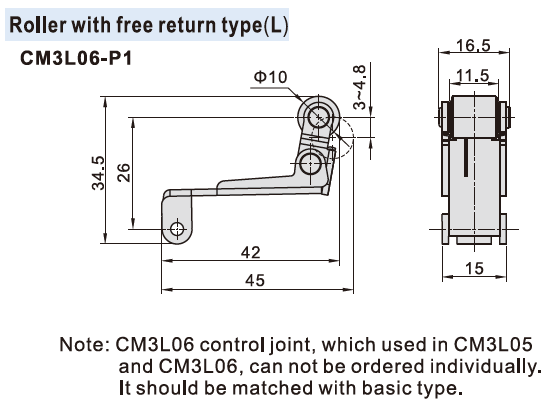

Dimensions:
