VM131-01-00A, VM131-01-01A, VM131-01-02A, VM130-01-30A SMC VM100 Series 3/2 way Mechanical Valve 1/8"
VM131-01-00A, VM131-01-01A, VM131-01-02A, VM130-01-30A SMC VM100 Series 3/2 way Mechanical Valve 1/8"
The SMC VM100 Series, including models like the VM131-01-00A and VM130-01-30A, is a line of 2/3-port mechanical valves renowned for their compact size, lightweight design (approximately 60g), and robust performance in industrial automation. These valves operate as 3/2-way (3-port, 2-position) distributors and function effectively within a broad pressure range, notably from -100 kPa to 1 MPa, making them suitable for both standard pneumatic and vacuum applications. Constructed with an aluminum alloy body, they feature a poppet design and are designed for maintenance-free operation without requiring lubrication, ensuring reliability in harsh conditions. A key feature is their versatility, offering various piping directions (side-ported or bottom-ported), multiple mounting methods (bracket, side, bottom, or panel mounting), and a wide array of interchangeable actuators to suit different mechanical or manual control needs.
Order Codes:
| Item Code | Port Size | Positions | Model |
|---|---|---|---|
| VM131-01-00A | 1/8" | 3/2 way | Basic |
| VM131-01-01A | 1/8" | 3/2 way | Roller Lever |
| VM131-01-02A | 1/8" | 3/2 way | One way Roller Lever |
| VM131-01-30A | 1/8" | 3/2 way | Push Button(Mushroom) |
Specification:
| Piping | Side ported | ||
| Fluid | Air | ||
| Operating pressure range | −100 kPa to 1 MPa | ||
| Ambient and fluid temperature | −5 to 60°C (No freezing) | ||
| Flow rate characteristics | 1 (P) ⇒ 2 (A) | 2 (A) ⇒ 3 (R) | |
| C [dm³/(s•bar)] | 0.6 | 0.5 | |
| b | 0.2 | 0.15 | |
| Cv | 0.11 | 0.1 | |
| Lubrication Note 1) | Not required | ||
| Port size | 1/8 (Rc, NPT, G) | ||
| Weight (Basic) | 60 g | ||
| Bracket part number Note 2) | VM1-B | ||
Note 1) Use turbine oil Class 1 ISO VG32, if lubricated.
Note 2) The bracket can only be used for side mounting of side ported type.

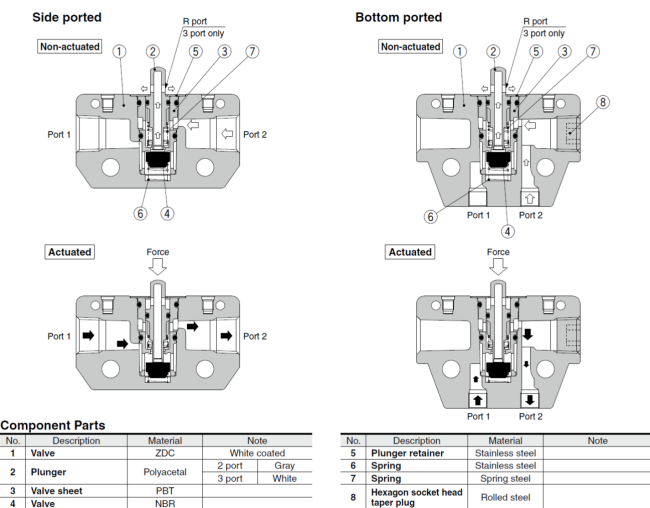

Construction:

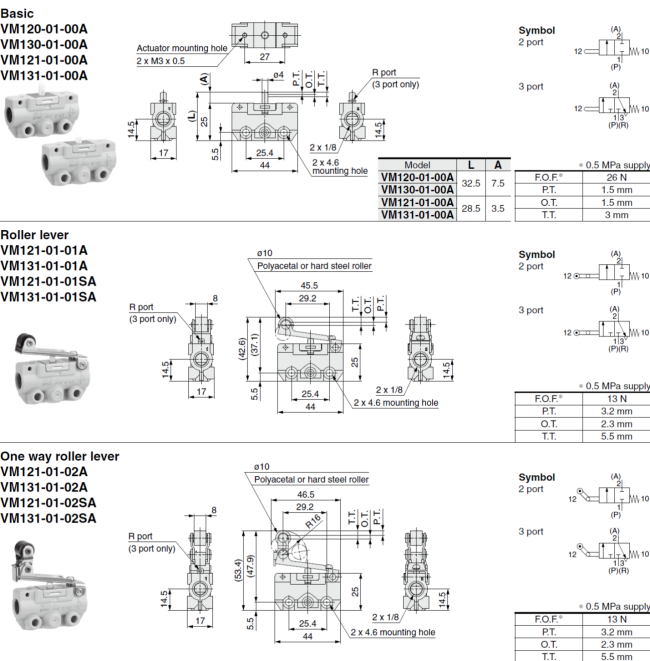

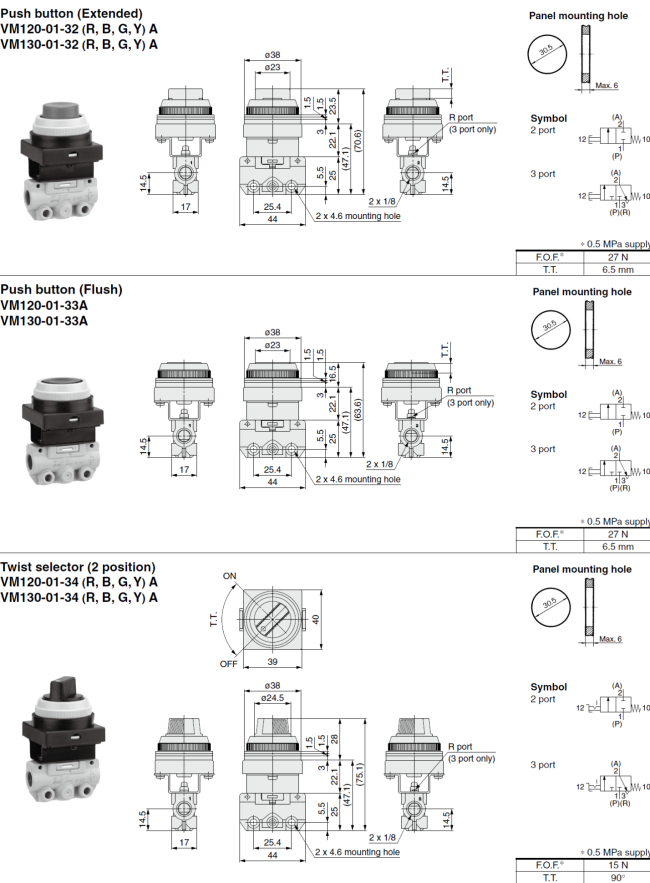

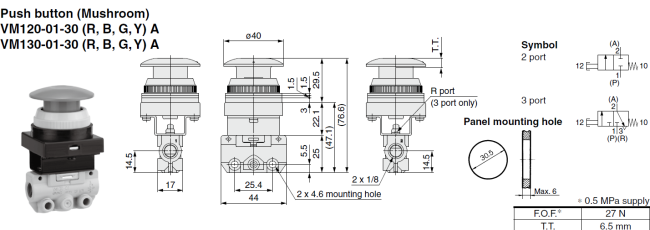

Dimensions:
