RE-01, RE-02, RE-03, RE-04 Sunrise RE Series One-way Flow Control Valve 1/8", 1/4", 3/8", 1/2"
RE-01, RE-02, RE-03, RE-04 Sunrise RE Series One-way Flow Control Valve 1/8", 1/4", 3/8", 1/2"
The Sunrise RE Series Flow Control Valve is a precision pneumatic component engineered for accurate airflow regulation in industrial automation systems. Designed as a one-way throttle check valve, it features an aluminum alloy body and is available in multiple port sizes ranging from G1/8" to G1/2". It operates effectively within a working pressure range of 0 to 0.8 MPa and an ambient temperature range of -5 to 60 °C. The valve's compact and lightweight design allows for direct pipe joint mounting, facilitating easy installation. Its key function is to provide sensitive and high-accuracy flow control, making it suitable for applications such as regulating cylinder speed, creating system time delays, and controlling lubricator oil volume in pneumatic systems.
| Item Code | Port Size | Positions |
|---|---|---|
| RE-01 | 1/8" | One-way |
| RE-02 | 1/4" | One-way |
| RE-03 | 3/8" | One-way |
| RE-04 | 1/2" | One-way |
| Model | RE-01 | RE-02 | RE-03 | RE-04 | |
| Working Media | Clean air | ||||
| Port Size | G1/8 | G1/4 | G3/8 | G1/2 | |
| Max.Working Pressure | 0.8MPa | ||||
| Proof Pressure | 1.0MPa | ||||
| Working Temperature Range | -5~60℃ | ||||
| Material | Body | Aluminum Alloy | |||
| Seal | NBR | ||||

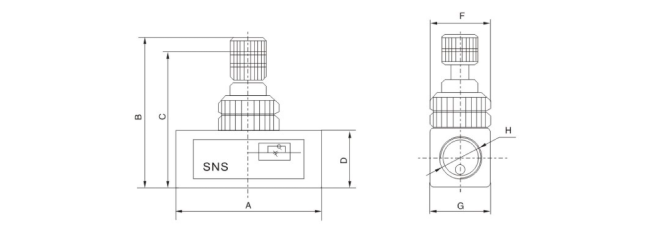

| Model | A | B | C | D | F | G | H |
| RE-01 | 43 | 50 | 41 | 20 | 18 | 20 | G1/8 |
| RE-02 | 43 | 50 | 41 | 20 | 18 | 20 | G1/4 |
| RE-03 | 52 | 57 | 51 | 25 | 24 | 25 | G3/8 |
| RE-04 | 52 | 57 | 51 | 25 | 24 | 25 | G1/2 |
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
