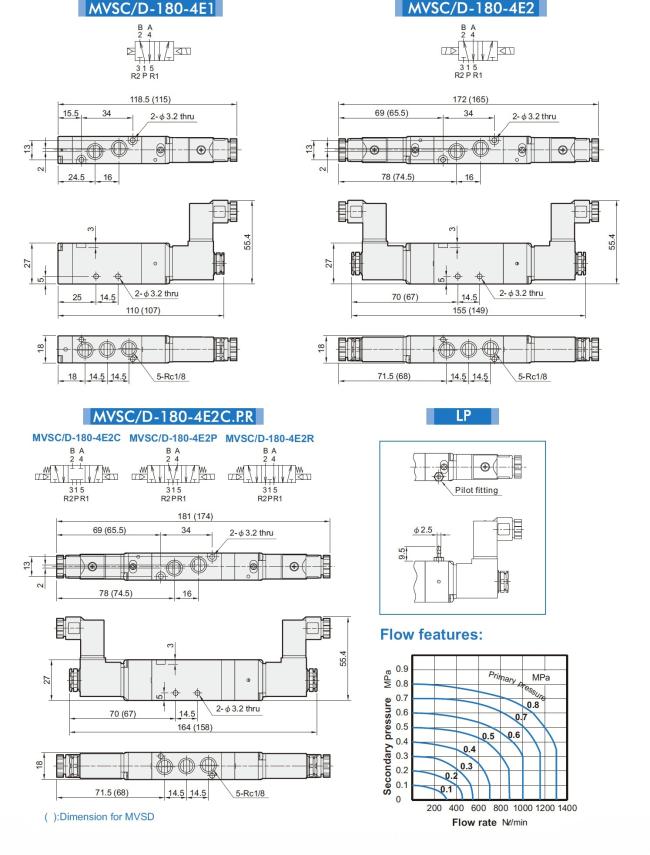

MVSC-180-4E1 MVSC-180-4E2 MVSC-180-4E2C.P.R Mindman 5/2 way 5/3 way Solenoid Valve Rc1/8
| Item Code | Port Size | Position | Type |
| MVSC-180-4E1 | Rc 1/8 | 5/2 way | Single Solenoid |
| MVSC-180-4E2 | Rc 1/8 | 5/2 way | Double Solenoid |
| MVSC-180-4E2C | Rc 1/8 | 5/3 way | Double Solenoid |
| MVSC-180-4E2P | Rc 1/8 | 5/3 way | Double Solenoid |
| MVSC-180-4E2R | Rc 1/8 | 5/3 way | Double Solenoid |
| Model | 3E1 | 3E2 | 4E1 | 4E2 | 4E2C.P.R |
| Bore No. | 6A | ||||
| Port size | Rc1/8 | ||||
| No. of port | 3 | 5 | |||
| No. of position | 2 | 3 | |||
| Medium | Air | ||||
| Operating pressure range | 0.15~0.8 MPa | 0.2~0.7 MPa | |||
| Operating pressure (LP) | 0~0.8 MPa | 0~0.7 MPa | |||
| External pilot pressure (LP) | 0.15~0.8 MPa | 0.2~0.7 MPa | |||
| Proof pressure | 1 MPa | ||||
| Effective orifice | 15 mm² | 12 mm² | 9 mm² | ||
| Response time | 30 ms | ||||
| Ambient temperature | − 5~+50℃ (No freezing) | ||||
| Voltage | AC110V, 220V (50/60)Hz, DC24V | ||||
| Power consumption | AC=3.7/ 3.1VA, DC=3W | ||||
| Available voltage range | ±10% | ||||
| Insulation class | F class | ||||
| Weight | 120 g | 172 g | 124 g | 176 g | 190 g |
