MVSC-300-4E1 MVSC-300-4E2 MVSC-300-4E2C.P.R Mindman 5/3 way 5/2 way Solenoid Valve 3/8"
For technical specifications and application suitability, the MVSC-300 series supports a wide range of standard voltages, including AC 110V, AC 220V (50/60 Hz), and DC 24V, making them compatible with various control systems across different regions . They have a fast response time of 0.05 seconds (50 ms) and are rated with an IP65 protection class, making them resistant to dust and water jets, which is crucial for harsh industrial settings . A common model is the MVSC-300-4E1, which is a 5/2-way, monostable valve with a single solenoid . It is important to note that these valves are specifically designed for use with filtered, non-lubricated compressed air and are not suitable for vacuum applications or other media.
Order Codes:
| Item Code | Port Size | Position | Type |
| MVSC-300-4E1 | 3/8" | 3/2 way | Single Solenoid |
| MVSC-300-4E2 | 3/8" | 3/2 way | Double Solenoid |
| MVSC-300-4E2C | 3/8" | 5/3 way | Double Solenoid |
| MVSC-300-4E2P | 3/8" | 5/3 way | Double Solenoid |
| MVSC-300-4E2R | 3/8" | 5/3 way | Double Solenoid |
Specification:
| Model | 3E1 | 3E2 | 4E1 | 4E2 | 4E2 C.P.R | |
| Bore No. | 10A | |||||
| Port size | 3/8 | |||||
| No. of port | 3 | 5 | ||||
| No. of position | 2 | 3 | ||||
| Medium | Air | |||||
| Operating perssure range | 0.2~0.8 MPa | 0.3~0.8 MPa | ||||
| Operating pressure (LP) | 0~0.8 MPa | |||||
| Pilot pressure range (LP) | (0.34×P(*1)+0.1)~0.5 MPa | |||||
| Proof pressure | 1 MPa | |||||
| Effective orifice | 30 mm² | 35 mm² | 25 mm² | |||
| Reponse time | 50ms | |||||
| Ambient temperature | -5~+50°C (No freezing) | |||||
| Voltage | AC110V, 220V, 24V (50/60)Hz, DC24V, 12V | |||||
| Power consumption | Standard | AC=4.8/4.4VA, 6/4.9VA, 6.7/5.4VA, DC=2W, 2.5W | ||||
| Power saving | DC24V=Start: 2W(*2) Power saving: 0.5W | |||||
| Available voltage range | ±10% | |||||
| Insulation class | F class | |||||
| Weight (g) | Valve | 325 | 453 | 320 | 444 | 505 |
| Manifold | 110n+64 (*3) | 85n+52 (*3) | ||||

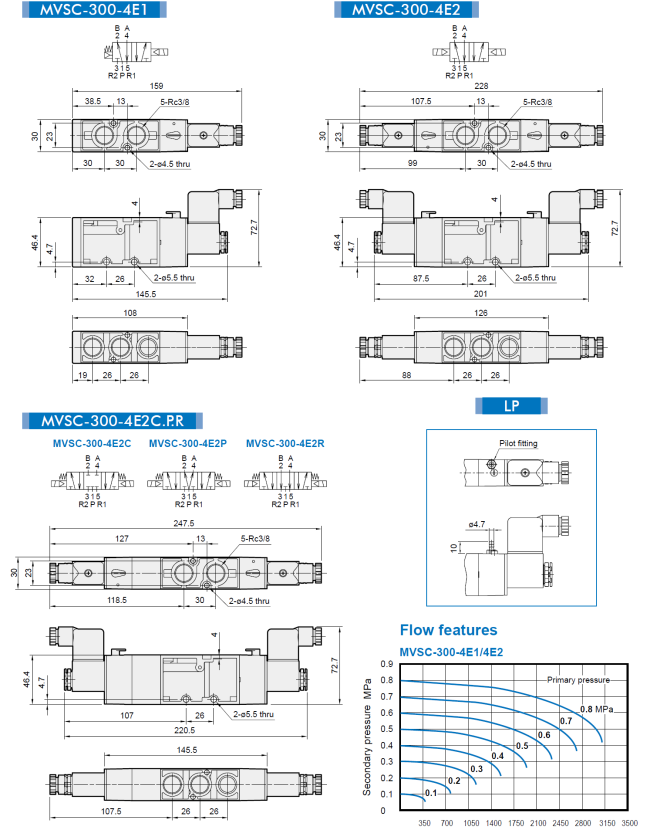

Dimensions:
