Mindman MVSC-460-3E1-NC MVSC-460-3E1-NO MVSC-460-3E2 3/2 way Solenoid Valve 1/2"
The Mindman MVSC-460 Series is a line of pilot-operated pneumatic solenoid valves recognized for their robust performance and high flow capacity. A key identifier for this series is its 46 mm body width. These valves are designed for standard directional control applications and are commonly available in 5/2-way (5-port, 2-position) and 5/3-way (5-port, 3-position) configurations, making them suitable for operating double-acting cylinders and other pneumatic components . They operate with filtered, non-lubricated compressed air within a standard pressure range of 0.2 to 0.8 MPa (with the 5/3 version requiring a minimum of 0.3 MPa) and feature a proof pressure of 1 MPa . They are equipped with G1/2" or 1/2-inch NPT ports and offer a high flow rate, with a Kv value of up to 1.85 m³/h, which translates to approximately 1994 normal liters per minute.
Order Codes:
| Item Code | Port Size | Position | Type |
| MVSC-460-3E1-NC | 1/2" | 3/2 way | Single Solenoid |
| MVSC-460-3E1-NO | 1/2" | 3/2 way | Single Solenoid |
| MVSC-460-3E2 | 1/2" | 3/2 way | Double Solenoid |
Specification:
| Model | 3E1 | 3E2 | 4E1 | 4E2 | 4E2 C.P.R | ||
| Bore No. | 15A | ||||||
| Port size | 1/2 | ||||||
| No. of port | 3 | 5 | |||||
| No. of position | 2 | 3 | |||||
| Medium | Air | ||||||
| Operating perssure range | 0.2~0.8 MPa | 0.3~0.8 MPa | |||||
| Operating pressure(LP) | 0~0.8 MPa | ||||||
| Pilot pressure range(LP) | (0.34xP(*1)+0.1)~0.5 MPa | ||||||
| Proof pressure | 1 MPa | ||||||
| Effective orifice | 60 mm2 | 50 mm2 | 30 mm2 | ||||
| Reponse time | 50 ms | ||||||
| Ambient temperature | -5~+50℃(No freezing) | ||||||
| Voltage | AC110V,220V,24V(50/60)Hz,DC24V,12V | ||||||
| Power Standard |
Standard | AC=4.8/4.4VA,6/4.9VA,6.7/5.4VA,DC=2W,2.5W | |||||
| Power saving | DC24V=Start:2W(*2) Power saving:0.5W | ||||||
| Available voltage range | ±10% | ||||||
| Insulation class | F class | ||||||
| Weight(g) | Valve | 325 | 455 | 339 | 464 | 525 | |
| Manifold | 131n+84 (*3) | 145n+91(*3) | |||||

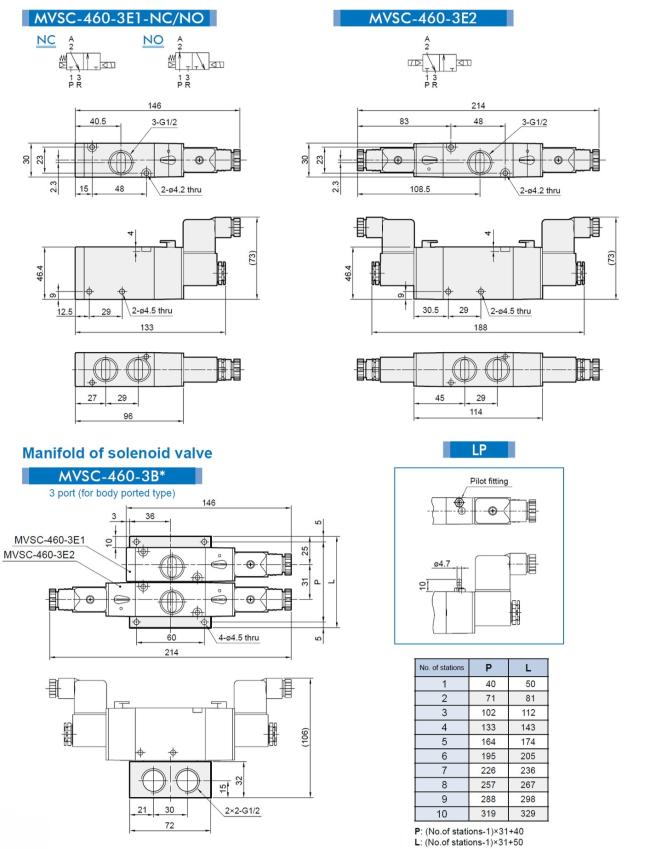

Dimensions:
