MVSC-460-4E1 MVSC-460-4E2 MVSC-460-4E2C.P.R Mindman 5/3 way 5/2 way Solenoid Valve 1/2"
From a technical procurement perspective, the MVSC-460 series offers models like the MVSC-460-4E1 (5/2-way, monostable with single solenoid) and the MVSC-460-4E2 (5/2-way or 5/3-way, bi-stable with double solenoids) . They support a wide range of standard voltages, including AC 110V, 220V (50/60 Hz), and DC 24V, allowing for integration with various control systems worldwide . It is important to note that as pilot-operated valves, they require a minimum differential pressure (2 bar for 5/2-way, 3 bar for 5/3-way) for proper operation and are not suitable for vacuum applications or media other than clean compressed air.
Order Codes:
| Item Code | Port Size | Position | Type |
| MVSC-460-4E1 | 1/2" | 5/2 way | Single Solenoid |
| MVSC-460-4E2 | 1/2" | 5/2 way | Double Solenoid |
| MVSC-460-4E2-C | 1/2" | 5/3 way | Double Solenoid |
| MVSC-460-4E2-P | 1/2" | 5/3 way | Double Solenoid |
| MVSC-460-4E2-R | 1/2" | 5/3 way | Double Solenoid |
Specification:
| Model | 3E1 | 3E2 | 4E1 | 4E2 | 4E2 C.P.R | ||
| Bore No. | 15A | ||||||
| Port size | 1/2 | ||||||
| No. of port | 3 | 5 | |||||
| No. of position | 2 | 3 | |||||
| Medium | Air | ||||||
| Operating perssure range | 0.2~0.8 MPa | 0.3~0.8 MPa | |||||
| Operating pressure(LP) | 0~0.8 MPa | ||||||
| Pilot pressure range(LP) | (0.34xP(*1)+0.1)~0.5 MPa | ||||||
| Proof pressure | 1 MPa | ||||||
| Effective orifice | 60 mm2 | 50 mm2 | 30 mm2 | ||||
| Reponse time | 50 ms | ||||||
| Ambient temperature | -5~+50℃(No freezing) | ||||||
| Voltage | AC110V,220V,24V(50/60)Hz,DC24V,12V | ||||||
| Power Standard |
Standard | AC=4.8/4.4VA,6/4.9VA,6.7/5.4VA,DC=2W,2.5W | |||||
| Power saving | DC24V=Start:2W(*2) Power saving:0.5W | ||||||
| Available voltage range | ±10% | ||||||
| Insulation class | F class | ||||||
| Weight(g) | Valve | 325 | 455 | 339 | 464 | 525 | |
| Manifold | 131n+84 (*3) | 145n+91(*3) | |||||

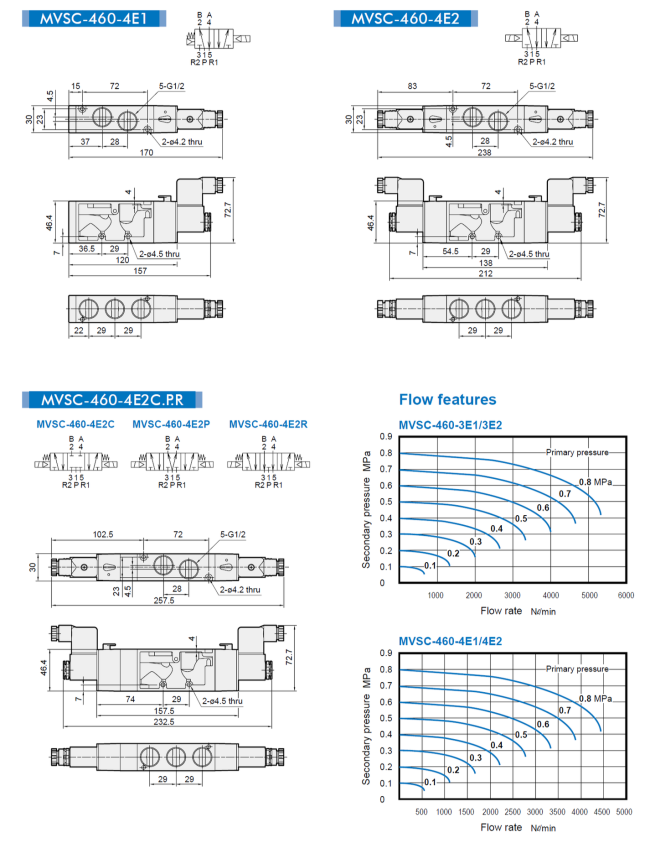

Dimensions:
