The Mindman MVSC1-150 is a compact, 5/2-way pneumatic solenoid valve renowned for its space-saving design, with a narrow body width of just 15 mm. It features an M5 x 0.8 port size​ and is engineered to operate with compressed air within a pressure range of 0.15 to 0.8 MPa, with a proof pressure of 1 MPa. A key feature is its use of DISK seals and U-packing made from HNBR material, which provides high wear resistance, excellent sealing, and contributes to an exceptionally long service life rated at 50 million cycles. This design ensures reliable performance in a wide ambient temperature range of -5 to +50°C (without freezing).

Order Codes:

Specification:

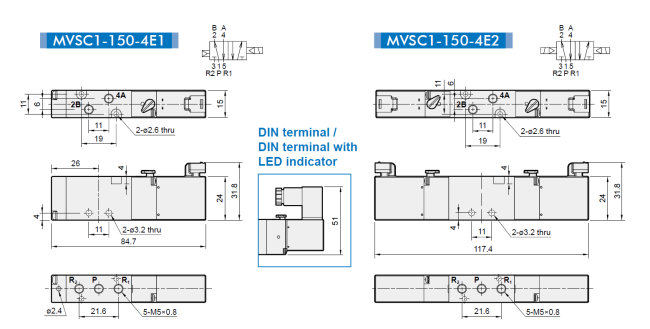

Dimensions:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
