The Mindman MVSD1-180 Series is a line of compact, industrially robust solenoid valves designed for precise pneumatic control. A key characteristic is its narrow body width of 18 mm, making it suitable for space-constrained applications. These valves feature an Rc1/8 port size​ and are engineered to operate with compressed air within a pressure range of 0.15 to 0.8 MPa, with a proof pressure of 1 MPa. They are available in standard configurations including 5-port, 2-position (5/2)​ and 5-port, 3-position (5/3), providing flexibility for controlling various pneumatic actuators. The flow rate is substantial, ranging from 490 to 653 liters per minute​ depending on the specific model and configuration . It is important to note that according to the official Mindman website, the MVSD1-180 series was discontinued on January 24, 2025, with the MVSD2-180 series listed as its replacement.

Order Codes:

Specification:

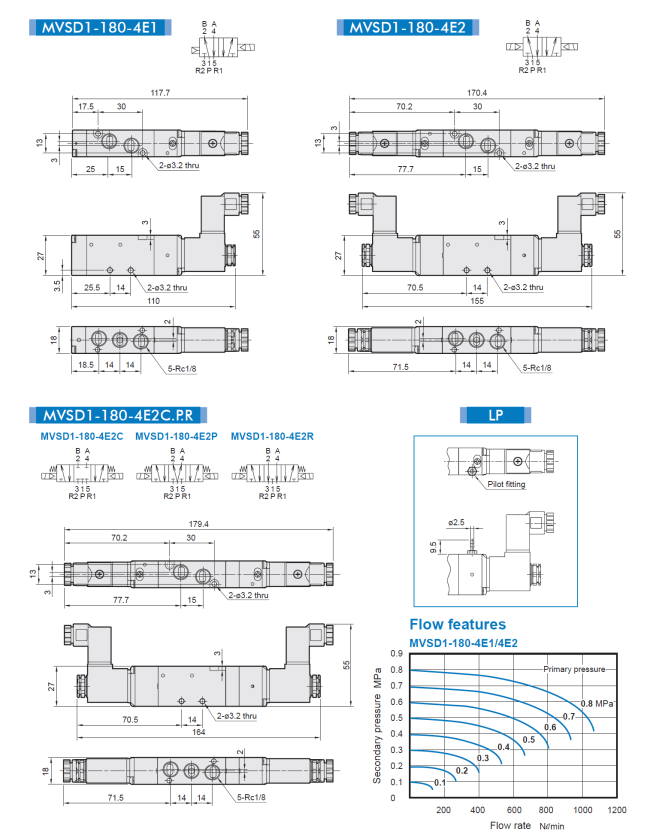

Dimensions:
