Mindman MVSE-300-4E1 MVSE-300-4E2 MVSE-300-4E2C, P, R 5/2 way 5/3 way Solenoid Valve 3/8"

The Mindman MVSE-300 Series is a robust, direct-piping type solenoid valve designed for controlling medium to large pneumatic actuators. A key feature is its 30 mm body width, providing a compact yet powerful footprint . It is available in standard configurations of 5-port, 2-position (5/2) and 5-port, 3-position (5/3), offering flexibility for controlling double-acting cylinders and complex circuits . The valve features a PT 3/8 (Rc3/8) port size​ and is engineered for a wide operating pressure range of 0.2 to 1.2 MPa (2-12 kgf/cm²) for 5/2-way and 0.3 to 1.2 MPa for 5/3-way, with a maximum proof pressure of 1.5 MPa . It delivers a high flow rate of 1510 Nl/min (approximately 1851-1906 l/min), making it suitable for applications requiring substantial air volume.

Order Codes:

Specification:

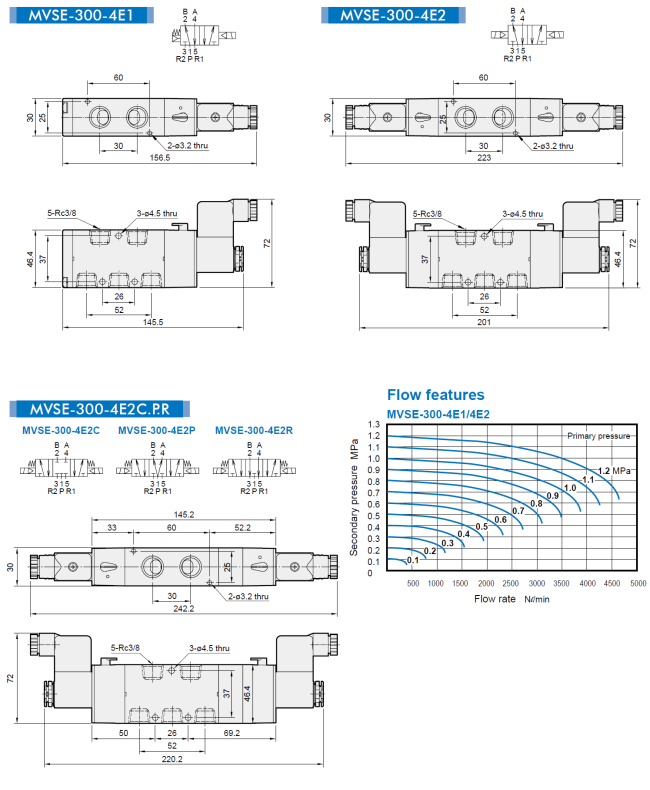

Dimensions:
