Mindman MVSE2-300-4E1 MVSE2-300-4E2 MVSE2-300-4E2C, R 5/2 way 5/3 way Solenoid Valve G1/4

The Mindman MVSE2-300 Series is a solenoid valve specifically engineered for reliable operation in demanding and special environments. It features a G1/4 port size​ and is designed to handle an operating pressure range of 0.12 to 1 MPa​ with a substantial flow rate ranging from 530 to 3500 Nl/min​ and a response time of 20 to 60 ms​ . Its most distinguishing characteristic is its exceptional temperature tolerance, capable of withstanding high temperatures up to +120°C and low temperatures down to -35°C​ . To achieve this, it utilizes specialized sealing materials: FKM (Viton) for high-temperature resistance and HNBR for low-temperature performance​ . This design makes it suitable for applications exposed to dust, extreme temperatures, humidity, and outdoor conditions​.

Order Codes:

Specification:

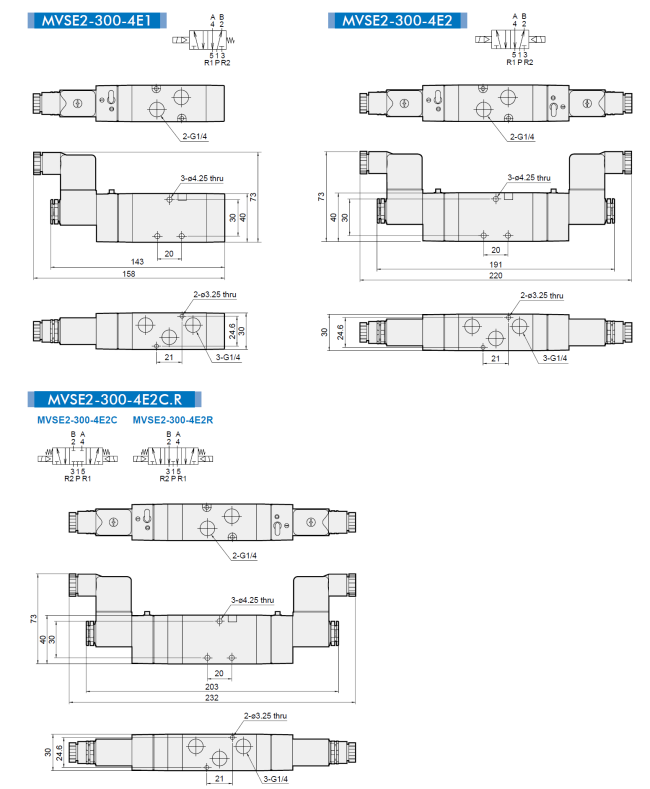

Dimensions:
