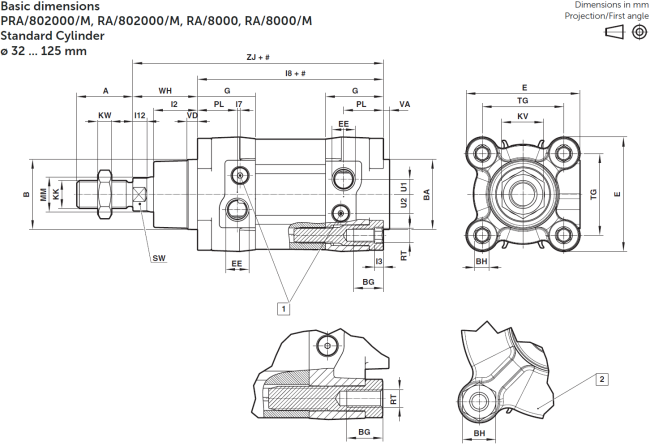

RA/8080/M/600 RA/8080/M/700 RA/8080/M/800 IMI Norgren Double-Acting Cylinder
| Item Code | Bore Size (ø mm) | Stroke (mm) | Type |
| RA/8080/M/600 | 80 | 600 | Round barrel |
| RA/8080/M/700 | 80 | 700 | Round barrel |
| RA/8080/M/800 | 80 | 800 | Round barrel |
| Cylinder ø (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 |
| Profile barrel | ● | ● | ● | ● | ● | ● | ● | ||||
| Round barrel | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Port size | G1/8 | G1/4 | G1/4 | G3/8 | G3/8 | G1/2 | G1/2 | G3/4 | G3/4 | G1 | G1 |
| Piston rod ø (mm) | 12 | 16 | 20 | 20 | 25 | 25 | 32 | 40 | 40 | 50 | 63 |
| Piston rod thread | M10 x 1,25 | M12 x 1,25 | M16 x 1,5 | M16 x 1,5 | M20 x 1,5 | M20 x 1,5 | M27 x 2 | M36 x 2 | M36 x 2 | M42 x 2 | M48 x 2 |
| Cushion length (mm) | 20 | 22 | 24 | 24 | 26 | 33 | 39 | 43 | 43 | 55 | 60 |
| Cushioning Adaptive cushioning systems "ACS" |
● | ● | ● | ● | ● | ● | ● | ||||
| Cushioning (adjustable cushion) | ● | ● | ● | ● | |||||||
| Initial cushion volume (cm3) | 12,8 | 20,2 | 36 | 64 | 111 | 235 | 427 | 784 | 1273 | 2534 | 4559 |
| Theoretical thrusts at 6 bar outstroke (N) | 482 | 754 | 1178 | 1870 | 3016 | 4710 | 7363 | 12064 | 18840 | 29436 | 48228 |
| Theoretical thrusts at 6 bar instroke (N) | 414 | 633 | 990 | 1680 | 2722 | 4416 | 6882 | 11310 | 18090 | 28236 | 47292 |
| Air consumption at 6 bar outstroke (l/cm) | 0,056 | 0,088 | 0,137 | 0,218 | 0,35 | 0,55 | 0,86 | 1,41 | 2,2 | 3,44 | 5,63 |
| Air consumption at 6 bar instroke (l/cm) | 0,048 | 0,074 | 0,114 | 0,195 | 0,32 | 0,51 | 0,79 | 1,32 | 2,1 | 3,3 | 5,41 |
