Festo VZWE-E-M22C-M-G34-200-H VZWE-E-M22C-M-G1-250-H Reverse jet pulse valves
Reverse jet pulse valves VZWE are piloted 2/2-way valves. They generate pulses of compressed air using a suitable solenoid coil for mechanically cleaning filters and dust filter systems. The valves are actuated using short electrical pulses. These pulses generate short pulses of compressed air at the output of the valve, which travel through the filter against the normal direction of flow of the filter system to release adhering particles from the filter.
| Item Code | Process valve connection | Type | Part no. |
|---|---|---|---|

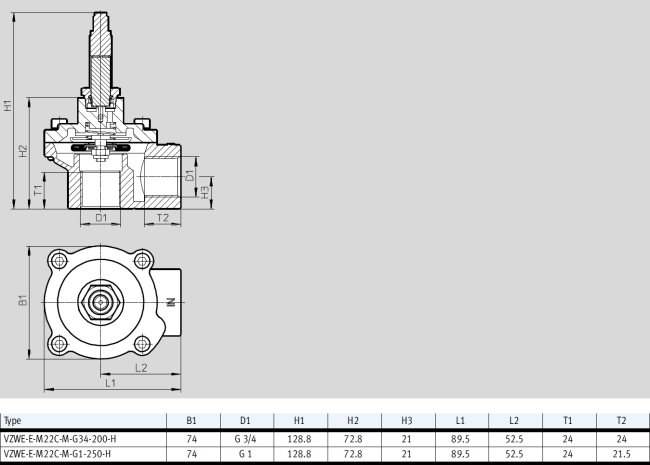

| VZWE-E-M22C-M-G34-200-H | G3/4 | Angle valve | 1794182 |
| VZWE-E-M22C-M-G1-250-H | G1 | Angle valve | 1795142 |

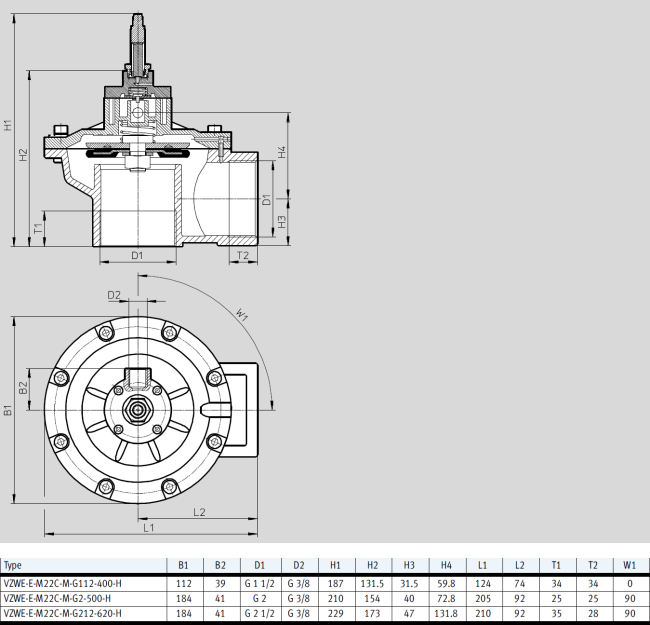

| Nominal size [mm] | 20 | 25 | 40 | 50 | 62 |
|---|---|---|---|---|---|
| Valve function | 2/2-way, single solenoid, closed | ||||
| Manual override | None | ||||
| Design | Diaphragm valve, angle design | ||||
| Reset method | Mechanical spring | ||||
| Type of control | Piloted | ||||
| Actuation type | Electric | ||||
| Type of mounting | Via thread, screwed in | ||||
| Mounting position | Any | ||||
| Direction of flow | Non-reversible | ||||
| Switching time on [ms] | ≤30 | ||||
| Switching time off [ms] | ≤100 | ||||
| Flow rate Kv [m³/h] | 15 | 22 | 48 | 78 | 95 |
| Process valve connection 1 | G 3/4 | G 1 | G 1 1/2 | G 2 | G 2 1/2 |
| Process valve connection 2 | G 3/4 | G 1 | G 1 1/2 | G 2 | G 2 1/2 |
1) Corrosion resistance class 3 according to Festo standard 940 070 Components subject to high corrosion stress. Externally visible parts with primarily functional surface requirements which are in direct contact with a normal industrial environment or media such as solvents and cleaning agents.
| Medium | Compressed air according to ISO 8573-1:2010 [7:4:4] | |||||
|---|---|---|---|---|---|---|
| Note about the operating/pilot medium | Lubricated operation not possible | |||||
| Medium pressure [bar] | 0.35 ... 8 | |||||
| Differential pressure [bar] | 0.35 | |||||
| Ambient temperature [°C] | -20 ... 60 | |||||
| Protection class | IP65 | |||||
| Corrosion resistance class CRC1) | 3 | |||||
| Reverse jet pulse valves | Material number | |||||
|---|---|---|---|---|---|---|
| ① Housing | Die-cast aluminium | EN AC-47100D | ||||
| ② Screws | High-alloy steel | 1.4301 | ||||
| ③ Armature tube | High-alloy steel | - | ||||
| - Seal | Nitrile rubber | - | ||||
| - Diaphragm | Nitrile rubber/polyamide | - | ||||
| - Note on materials | Contains PWS (paint-wetting impairment substances), RoHS-compliant | - | ||||
