Shako MSV86522 5/2 way 1/8" 1/4" Mechanical With 8 Operating Styles Pneumatic Manual Valves
Price:
USD2.5-3.5
MOQ:
1 piece
Delivery Time:
within 1-30 working days after payment
Brand:
Shako or Oem
Product Description
Shako MSV86522 5/2 way 1/8" 1/4" Mechanical With 8 Operating Styles Pneumatic Manual Valves
Features:
1.To be installed in moving devices like Pneumatic Cylilnder, slide, and so on.
2.Total 8 operating styles
3.Panel bore size: 30mm or 25mm
4.Operator Color: Black:TB,LB Red:PB,PP,PPL,EB
5.Optional Color:Green ,Black, Yellow for PB,PP,PPL
Ordering Code: MSV98322, MSV98322R, MSV98322TB, MSV98322LB,MSV98322PB, MSV98322PP, MSV98322PPL, MSV98322EB
Blank:Basic Type
R: Roller Type
TB:Select type Knob
LB:Lengthened Knob
PB:Big Round Button
PP:Flat Round Button
PPL:Cabochon Button
EB: Locking Button
PH:Push Pull Button
Specification:
| Model | MSV86522 |
| Port size | 1/4" (Option 1/8") |
| Body material | Aluminum alloy |
| Panel dimension | 30mm (Option:25mm) |
| Fluid | Compressed 40μm filtered air |
| Sectional area | 18mm² |
| Operating pressure range | 0 ~ 9 kgf/cm² |
| Proof pressure | 10 kgf/cm2 |
| Ambient temperature | -10°C ~ 60 °C |
| Standard operator color | Black: TB, LB; Red: PB, PP, PPL, EB |

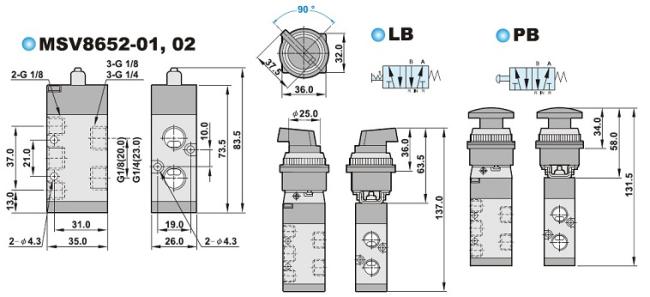

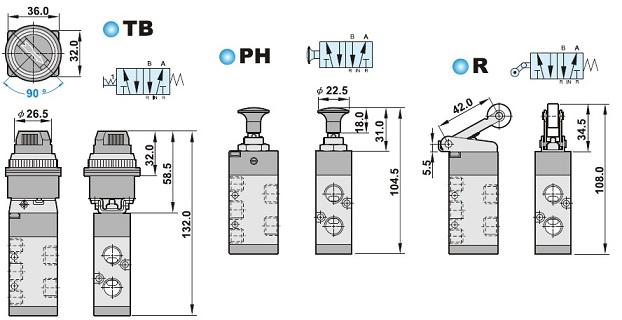

Dimension(mm):
