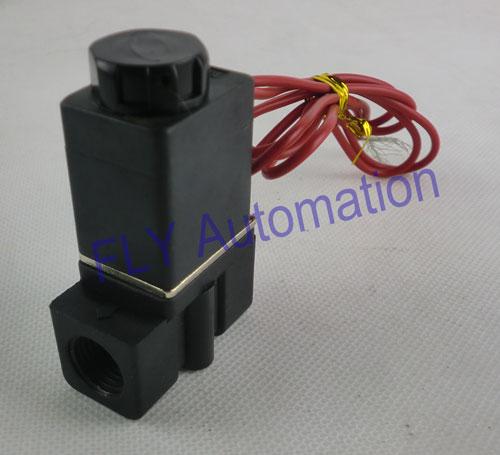

DC 24V 2P025-06 2P-025-08 Plastic Miniature Pneumatic Solenoid Valves

Price Negotiable

Price: Negotiation

MOQ: 1 piece

Delivery Time: 3 working days after receiving the customers' payment

Brand: Airtac or OEM

Product Description

DC 24V 2P025-06 2P-025-08 Plastic Miniature Pneumatic Solenoid Valves

Product features

1.Direct acting and normally closed type 2/2 way solenoid valve canquickly and sensitively change the direction;

2.It has compact structure, small size and light weight. It is easy tobe installed and dismantled;

3.The valve body is made of nylon 66. The heat resistanceclassification of coil is B step. The seals are made of fluororubber which is suitable for different kinds of fluid.

4.The protection class of coil is IP65, and the electrical entry isgrommet.
Specification:

Model	2P025-06	2P025-08
Fluid	Air, Water, Oil
Acting	Internally piloted acting
Type	Normally closed
Orificesize(mm)	2.5
Cv Value	0.23
Port size	G1/8	G1/4
Viscositylimit	Under 20CST
Operatingpressure	0~0.7MPa(0~100psi)
Proof pressure	1.05MPa(150psi)
Materials ofbody	PA 66
Seal material	fluororubber
Min.activating time sec	0.05 sec and below

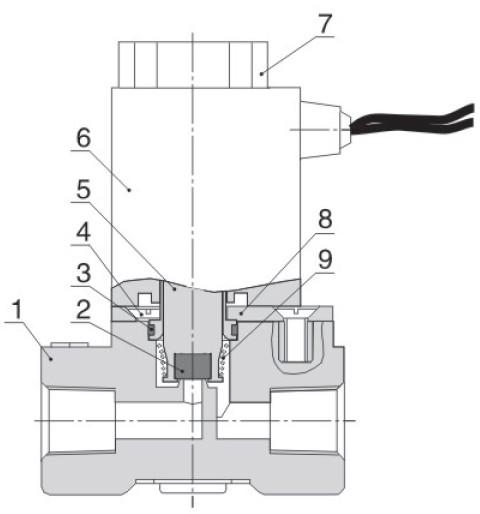

Inner structure:

NO.	Item	NO.	Item	NO.	Item
1	Body	4	Pilotscrew	7	Coilnut
2	Bottomcover gasket	5	Armature	8	Fixedplate
3	O-ring	6	Coil	9	Spring

Specification of coil:

Valve type	Power	Frequency (Hz)	Voltage range	Electrical entry	Power consumption (VA/W)	Insulation	Temp rise(ºC)
2P025	AC	50	±15%	Terminal	7.0VA	Class B	35
		60
	DC	-	±10%	Grommet	7.0W		45
