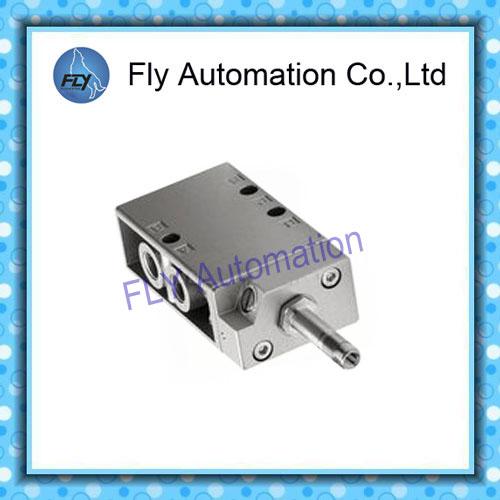

NBR Seal Tiger Valve Pneumatic Solenoid Valves , Inner Pilot Operated

Price Negotiable

Price: USD18-25

MOQ: 1 pcs

Delivery Time: within 10 working days after payment

Brand: Festo or Fly

Product Description

NBR Seal Tiger Valve Pneumatic Solenoid Valves , Inner Pilot Operated

Quick Detail:

1. Large Aperture,big flow rate,Rated flow 1300L/Min

2. Applicable for big bore size and long stroke cylinder
3. Din connector and Socket type connecting for selectable
4. High quality pilot armature ensure rapid and sensitive feedback when connect eletricity
5. IP65 class Electromagnetic Induction Coil

6. MFH series tiger valve classic type Festo Interchangeable
7. Body Material Aluminum Die-casting
8. Pilot Operated,Inner Pilot type
9. Heavy duty long service life

Specifications:

ORDERING CODE
MFH	5	1/4	AC220V	S
Type	Function Type	Port Size	Voltage	Electricity Connect Form
MFH:Tiger Solenoid valve Classic type Festo Standard	5:Two Position Five way Single Coil	1/8:G1/8	AC220V:220VAC	Blank:Standard Connector
		1/8:G1/8	AC110V:110VAC	LD:Brown Din Connector with Light Indicator
		1/4:G1/4	DC24V:24VDC	LD1:White Din Connector With Light Indicator
			AC24V:24VAC	S:Socket type
			DC12V:12VDC	S:Socket type

SPECIFICATION
MODEL	MFH-5-1/8	MFH-5-1/4
Working Fluid	Filtered Compressed Air
Position And Way Numbers	Two Position-Five Way
Rated Flow	600L/Min(CV=1.32)	1300L/Min(CV=1.32)
Working Pressure	0.2~0.8MPa
Ambient&Fluid Temp	-10~60℃
Motion Pattern	Inner Pilot Operated Mechanical Spring return
Manual Override	Locked type 180º Switching for positioning Torque 1nm
Mounting model	Through Holes
Body Material	Aluminum Die-casting
Seals Material	NBR
Insulation&Protection Class	F Class IP65
Voltage Tolerance	±10%
Power consumption	Holding: AC:5.5VA DC:4.8W
