The 110 series Solenoid Valves, which achieve highly reliable, powerful, and low current basic performance
in a compact, thin body, offer a simple and flexible standard type, and a full-option type with advanced
maintenance features, to become still more user-friendly.
Standard type: Its clean lines emphasize basic performance, for low-cost and versatile applications.
F type manifold: Direct piping type valves can be mounted directly on this manifold. An FE type manifold enabling collected pilot exhaust through its PR port is also available.
Full-option type:Greatly improves piping and wiring work efficiency, for excellent applications in assembly, adjustment, and maintenance.
AJ type manifold Combines all ports into a manifold base. Quick fittings are built into the delivery ports (4(A), 2(B)), allowing easy assembly and maintenance in a confined space.

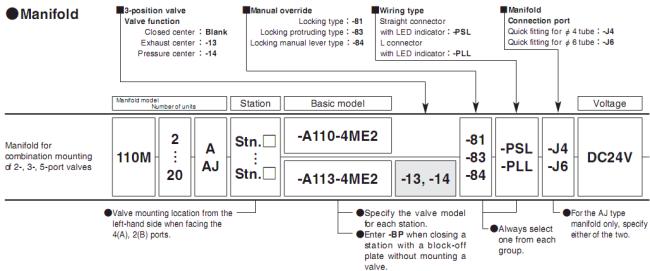

Small sized manifold for 2-, 3-port valvesManifold for combination mounting of 2-, 3-, 5-port valves
Air pressure: 0.5MPa {5.1kgf/cm2} [73psi.]
Piping inner diameter and length : 2.5 [0.10in.]X1000mm [39in.]
Cylinder stroke: 150mm [5.91in.]
Fitting: Quick fitting TS4-M5
|

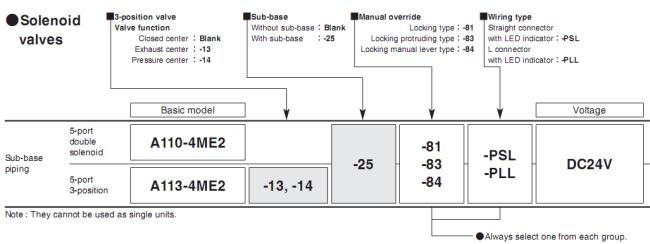

Item Basic model |
Direct piping, F, FE type manifolds |
111E1 (110E) |

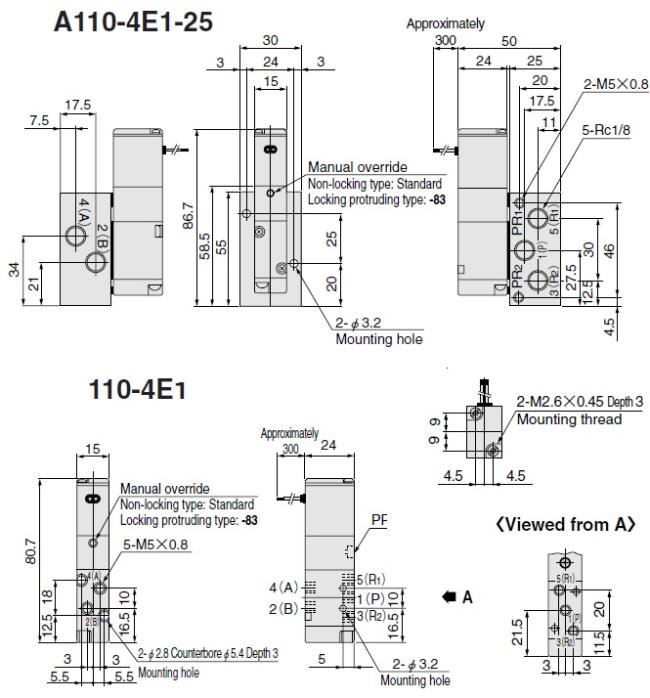

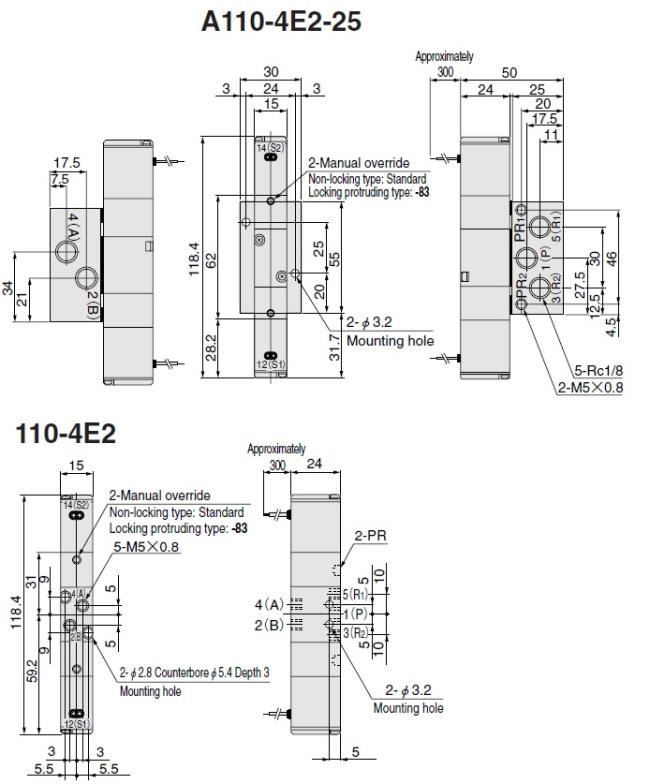

110-4E1 110-4E2 |
110-4KE2 |

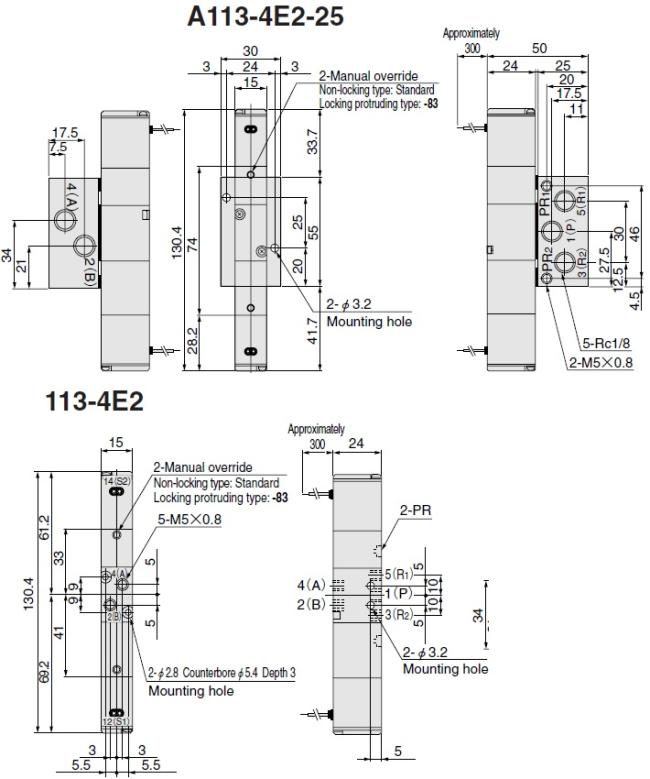

113-4E2 |
113-4KE2 |
|
Sub-base piping, A, AJ type manifolds |
A111E1 (A110E1) |

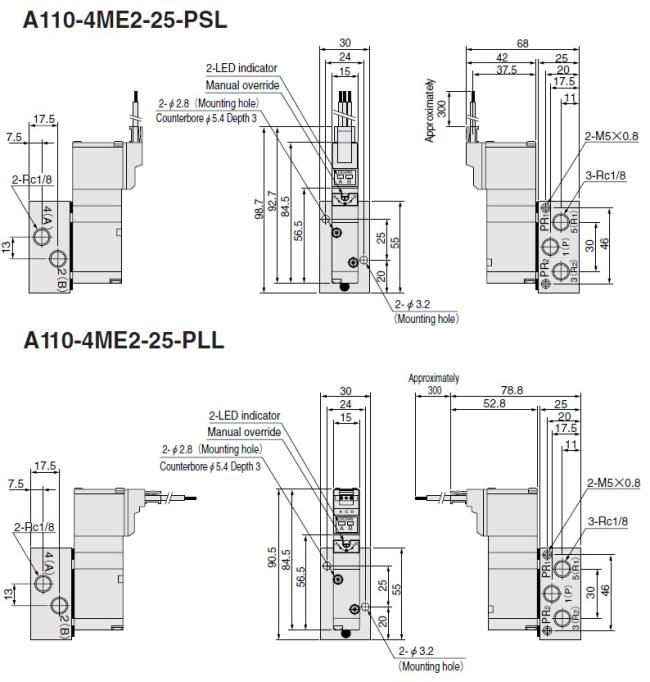

A110-4E1 A110-4E2 A110-4ME2 |
Al10-4KE2 |

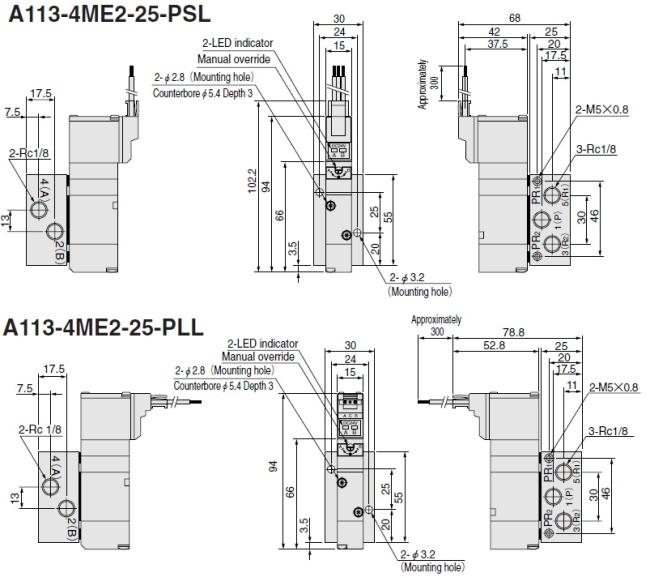

A113-4E2 A113-4ME2 |
A113-4KE2 |
|
|
Number of positions |
2 positions |
3 positions |
||||
|
Number of ports |
2, 3 ports |
5 ports |
||||
|
Valve function |
Normally closed (NC, standard) or Normally open (NO, optional) |
Single solenoid, Double solenoid or Tandem solenoid |
Twin solenoid |
Closed center (standard), Exhaust center (optional), Pressure center (optional) or Tandem solenoid |
Closed center (standard), Exhaust center (optional), Pressure center (optional) or Twin solenoid |
|
|
Media |
Air |
|||||
|
Operation type |
Internal pilot type |
|||||
|
Effective area (Cv) mm2 |
4.2(0.23) |
3.8(0.21) |
3.6 (0.2) |
|||
|
Port size |
M5X0.8 |
|||||
|
Lubrication |
Not required |
|||||
|
Operating pressure range MPa {kgf/cm2} [psi] |
0.15-0.7{1.5-7.1} [22-102] |
|||||
|
Proof pressure MPa {kgf/cm2} [psi] |
1.05{10.7} [152] |
|||||
|
Response time ON/OFF ms |
DC12V, DC24V |
15/25 or below |
15/25 (20) or below |
|
15 or below |
15/30 or below |
|
AC100V, AC200V |
15/15 or below |
15/15 (15) or below |
|
— |
15/20 or below |
|
|
Maximum operating frequency Hz |
5 |
|||||
|
Minimum time to energize for self holding ms |
— |
50(D110-4E2) |
50 |
— |
||
|
Operatirg temperalire range (atoptere and media) °C [°F] |
5-50 [41-122] |
|||||
|
Shock resistance m/s2 {G} |
1373.0 (140.0} (Axial direction 294.2 {30.0}) |
294.2 {30.0} |
||||

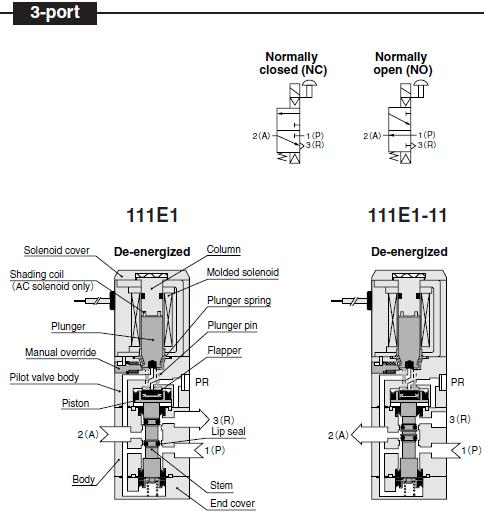

Major Parts and Materials:
|
Parts |
Materials |
|
|
Valve |
Body |
Aluminum alloy (anodized) |
|
O-ring |
Synthetic rubber |
|
|
Flapper |
||
|
Diaphragm |
Synthetic rubber (urethane) |
|
|
Plunger |
Magnetic stainless steel |
|
|
Column |
|
|
|
Spring |
Stainless steel |
|
|
Mounting base |
Mild steel (zinc plated) |
|
|
Manifold |
Body |
Aluminum alloy (anodized) |
|
Block-off plate |
Mild steel (zinc plated) |
|
|
Seal |
Synthetic rubber |
|
