Air-Piloted Pneumatic Solenoid Valves 2 Way 5 Port AC100V AC200V DC24V

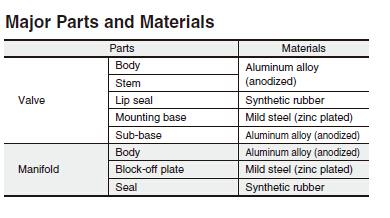

Basic model

Solenoid specifications

Single solenoid

Double solenoid

3-position double solenoid

For direct piping For F type manifold

240-4E1

240-4E2

243-4E2

For standard type sub-base For A type, B type manifolds

A240-4E1

A240-4E2

A243-4E2

For pug-in type sub-base For AW, BW type manifolds

W240-4E1

W240-4E2

W243-4E2

Media

Air

Operation type

Internal pilot type

Number of positions, Number of ports

2 positions, 5 ports

3 positions, 5 ports

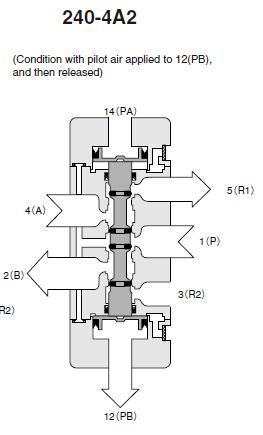

Valve function

—

Closed center (standard) or Exhaust center (optional)

Effective area〔Cv〕 mm²

16〔0.88〕(11.3〔0.62〕) n* 1

15〔0.83〕(11〔0.61〕)^{Note 1}

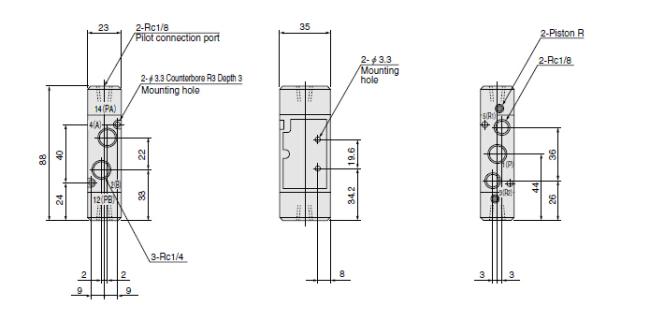

Port size

P, A, B: Rc1/4 R: Rc1/8 (P, A, B, R: Rc1/4 PR: Rc1/8) _e 2

Lubrication

Not required

Operating pressure range MPa {kgf/cm²} [psi.]

0.17 〜0.7 {1.7 〜7.1} [25 〜102]

Proof pressure MPa {kgf/cm²} [psi.]

1.05 {10.7} [152]

Response time ms ON/OFF

DC24V

25/35

20/20

25/55

AC100V, AC200V

25/25

20/20

25/45

Operating temperature range (atmosphere and media) [°F]

5〜50 [41〜122]

Shock resistance m/s²{G}

Lateral direction

1373.0 {140.0}

Axial direction

451.1 {46.0} | 264.8 {27.0} | 588.4 {60.0}

Mounting direction

Any

Maximum operating frequency Hz

5

Minimum time to energize ms

——

50

——
