Pneumatic Tube Fittings Metal nickel-plated adapter fittings PGJ series
Price:
USD2-5
MOQ:
1 peice
Delivery Time:
within 1-30 working days after payment
Brand:
Fly
Product Description

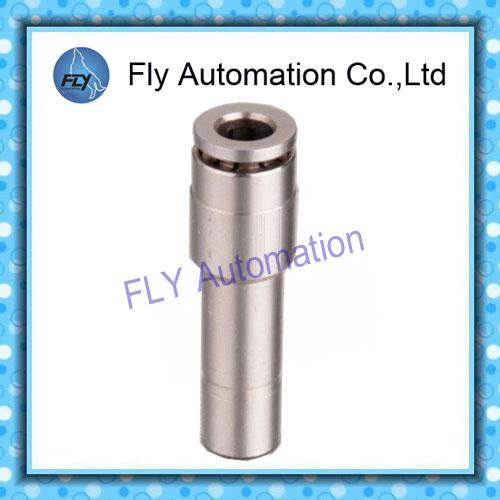

Pneumatic Tube Fittings Metal nickel-plated adapter fittings PGJ series
1.Housing material:H 59 nickel plated copper
2.Max working pressure:230PSI
3.Working Ambient temperature:-20℃ to +120℃
4.Button structure:Camozzi type automatic machining cutting slotting structure
5.Working medium:Water,compressed air,oil,etc.
6.Weight:15g
Characteristics:
NBR seal material , material density no leakage and longer life. Release ring slotted structure , automatic processing, swap easier. Difficult to form a scratch on the tube surface. Toggle / right-angle bends and tees are 360 degree rotatable structure.High temperature, high pressure , corrosion-resistant , anti-UV , appearance.
| Model | ||
|---|---|---|
| Diameter ( metric intubation ) | Diameter ( metric ) - Diameter ( Inch ) | Diameter ( Inch ) - Diameter ( Inch ) |
| AJPGJ 06-04 | AJPGJ 08-1/4 | AJPGJ 1/4-5/32 |
| AJPGJ 08-04 | AJPGJ 10-1/4 | AJPGJ 5/16-5/32 |
| AJPGJ 08-06 | AJPGJ 10-5/16 | AJPGJ 5/16-1/4 |
| AJPGJ 10-06 | AJPGJ 12-1/4 | AJPGJ 3/8-1/4 |
| AJPGJ 10-08 | AJPGJ 12-5/16 | AJPGJ 3/8-5/16 |
| AJPGJ 12-06 | AJPGJ 12-3/8 | AJPGJ 1/2-1/4 |
| AJPGJ 12-08 | AJPGJ 1/2-5/16 | |
| AJPGJ 12-10 | AJPGJ 1/2-3/8 | |
