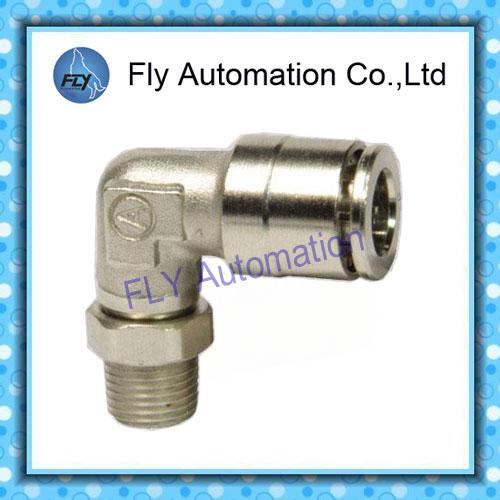

90 degree right angle can be rotated Pneumatic Tube Fittings PL series

Price Negotiable

Price: USD2-5

MOQ: 1 peice

Delivery Time: within 1-30 working days after payment

Brand: Fly

Product Description

90 degree right angle can be rotated Pneumatic Tube Fittings PL series

1.Housing material:H 59 nickel plated copper

2.Max working pressure:230PSI

3.Working Ambient temperature:-20℃ to +120℃

4.Button structure:Camozzi type automatic machining cutting slotting structure

5.Working medium:Water,compressed air,oil,etc.

6.Weight:25g

Characteristics:

NBR seal material , material density no leakage and longer life. Release ring slotted structure , automatic processing, swap easier. Difficult to form a scratch on the tube surface. Toggle / right-angle bends and tees are 360 degree rotatable structure.High temperature, high pressure , corrosion-resistant , anti-UV , appearance.

Model
DN- screw thread(R)			DB-screw thread(R)		DN- screw thread(NPT)
PL 04-M5	PL 06-04	PL 12-02	PL1/8-01	PL5/16-02	PL1/8-N01	PL1/4-N04	PL1/2-N03
PL 04-M6	PL 08-01	PL 12-03	PL1/8-02	PL5/16-03	PL1/8-N02	PL5/16-N01	PL1/2-N04
PL 04-01	PL 08-02	PL 12-04	PL3/16-01	PL5/16-04	PL5/32-N01	PL5/16-N02
PL 04-02	PL 08-03	PL 16-03	PL3/16-02	PL3/8-01	PL5/32-N02	PL5/16-N03
PL 06-M5	PL 08-04	PL 16-04	PL3/16-03	PL3/8-02	PL3/16-N01	PL5/16-N04
PL 06-M6	PL 10-01		PL1/4-01	PL3/8-03	PL3/16-N02	PL3/8-N01
PL 06-01	PL 10-02		PL1/4-02	PL3/8-04	PL3/16-N03	PL3/8-N02
PL 06-02	PL 10-03		PL1/4-03	PL1/2-02	PL1/4-N01	PL3/8-N03
PL 06-03	PL 10-04		PL1/4-04	PL1/2-03	PL1/4-N02	PL3/8-N04
			PL5/16-01	PL1/2-04	PL1/4-N03	PL1/2-N02
