Danfoss Refrigeration Equipment Solenoid Valve Coil DIN43650A Type 16W 18VA 018F6701

Use to Danfoss Refrigeration Equipment

Coils for AKV and AKVA valves are specially designed for heavy-duty operation under the severe conditions of high humidity and temperature fluctuations typical of most refrigeration systems.

Solenoid Valves for refrigeration applications, standard types for fluorinated refrigerants and ammonia (R717) as well as solenoid valves for water and brine.
The category also contains Solenoid Valves in stainless steel, Gas Powered Valves and Pulse Solenoid Valves.

Ambient temperature: -40 - +50°C.
Permissible voltage variation: +10 - -15%.
3-core cable: The external thread in the screwed cable entry suits flexible steel hose or corresponding cable protection.

Terminal box: Leads are connected to terminal screws in the terminal box. The box is fitted with a Pg 13.5 screwed entry for 6-14 mm cable. Max lead cross section: 2.5 mm

High:44.5MM

Wide:46MM

Inner Pore:Φ15

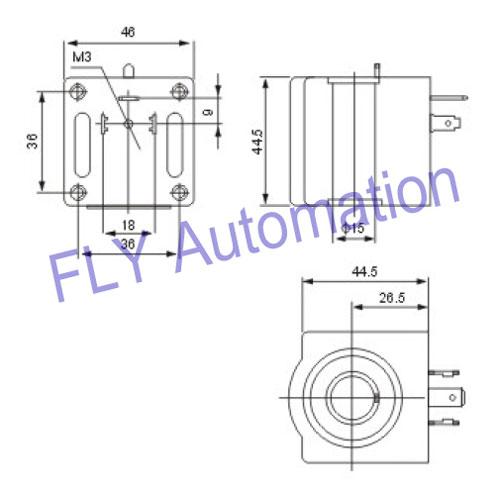

Dimension
